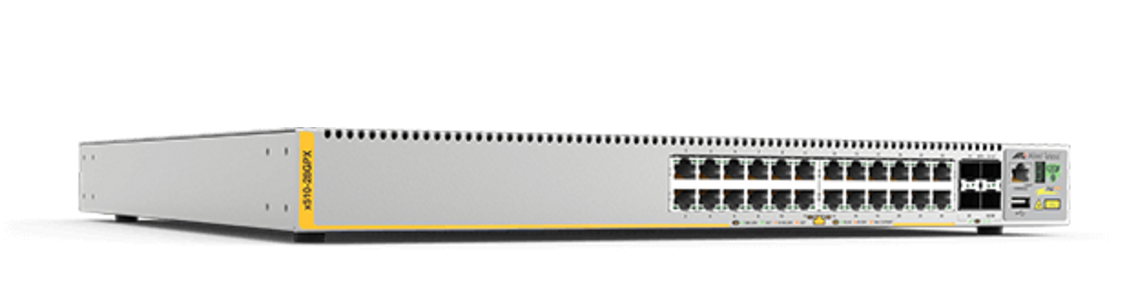

Allied Telesis AT-x510-28GPX 1021R
Model AT-x510-28GPX 1021RPart no. 1021REAN 4511427076579
55 specifications
- Memory512 MB
- Noise45 dB
- Weight5.8 kg
- ColourGrey
- Switch layerL3
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 512 MB
- Noise
- 45 dB
- Weight
- 5.8 kg
- Colour
- Grey
- Switch layer
- L3
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-x510-28GPX 1021R
- Part number
- 1021R
- EAN / UPC
- 4511427076579
- Also known as
- Allied Telesis AT-x510-28GPX 1021R L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
55 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 100BASE-BX, 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.2 Mpps |
| Latency (1 Gbps) | 4.4 µs |
| Latency (10 Gbps) | 3.1 µs |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Noise level | 45 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 0 |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 5.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.8 kg |
