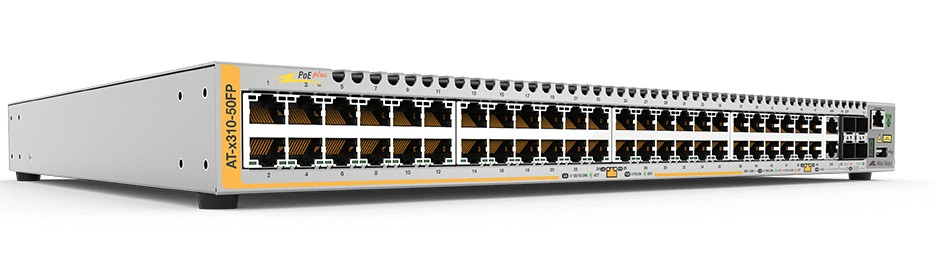

Allied Telesis AT-X310-50FT network switch Managed L3 Fast Ethernet (10/100) 1U Grey
Model AT-X310-50FT
56 specifications
- Noise33.4 dB
- Type1U
- Weight4.6 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Noise
- 33.4 dB
- Type
- 1U
- Weight
- 4.6 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-X310-50FT
- Part number
- AT-X310-50FT
- Also known as
- Allied Telesis AT-X310-50FT network switch Managed L3 Fast Ethernet (10/100) 1U Grey
Specifications
56 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN, Tagged VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 17.6 Gbit/s |
| Throughput | 13.1 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 2048 |
| Packet buffer memory | 3 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCPv6 client, DHCP server, DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| DoS attack prevention | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Wall mountable | Yes |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
Performance
| Specification | Value |
|---|---|
| Noise level | 33.4 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 48 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 164 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 310 mm |
| Height | 44 mm |
| Weight | 4.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 560 mm |
| Package depth | 510 mm |
| Package height | 150 mm |
| Package weight | 6.1 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC part15 Subpart B / Class A, VCCI Class A FCC Class A EN55032 Class A CISPR 32 Class A RCM Class A |
