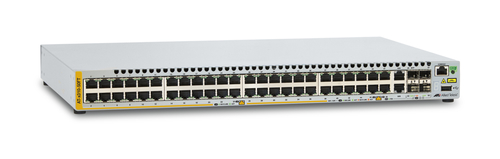

Allied Telesis AT-x310-50FP-50 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Allied Telesis AT-x310-50FP-50 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Model AT-x310-50FP-50Part no. 990-003942-50EAN 767035200637

39 specifications
  • Type1U
  • Weight5.8 kg
  • ColourGrey
  • Quality of Service (QoS) supportYes
  • Basic switching RJ-45 Ethernet ports quantity48
  • 10G supportNo
See all specifications

Overview

Type
1U
Weight
5.8 kg
Colour
Grey
Quality of Service (QoS) support
Yes
Basic switching RJ-45 Ethernet ports quantity
48
10G support
No
Brand
Allied Telesis
Model
AT-x310-50FP-50
Part number
990-003942-50
EAN / UPC
767035200637
Also known as
Allied Telesis AT-x310-50FP-50 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Specifications

39 specifications in 13 groups

Management features

Quality of Service (QoS) supportYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity2
Console portRJ-45
Power connectorDC-in jack

Network

Networking standardsIEEE 802.2, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Auto MDI/MDI-XYes

Data transmission

MAC address table16000 entries
Switching capacity17.6 Gbit/s
Throughput10.1 Mpps

Multicast features

Multicast supportYes

Design

Rack mountingYes
Form factor1U
Product colourGrey
LED indicatorsYes
SafetyUL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1

Performance

Flash memory64 MB

Power

AC input voltage90 - 260 V
AC input frequency47/63 Hz
Power consumption (typical)61 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power over Ethernet plus (PoE+) ports quantity12
Total Power over Ethernet (PoE) budget307 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Heat dissipation349 BTU/h

Weight & dimensions

Width440 mm
Depth360 mm
Height44 mm
Weight5.8 kg

Certificates

CertificationUL, cUL

Logistics data

Harmonized System (HS) code85176990
