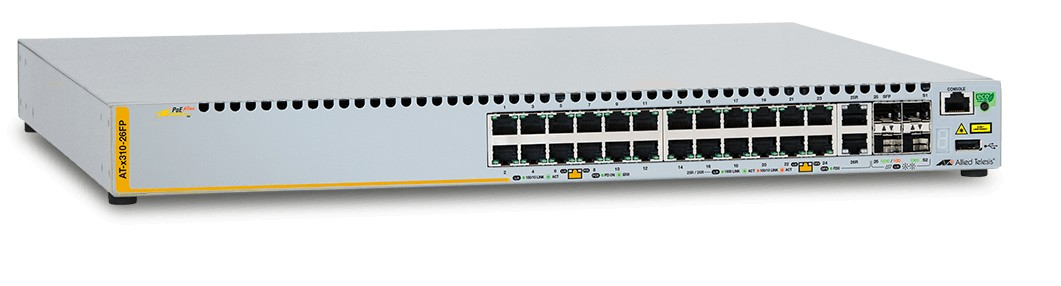

Allied Telesis AT-X310-26FP network switch Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

Allied Telesis AT-X310-26FP network switch Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

Model AT-X310-26FP

61 specifications

Type1U
Weight5.4 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportNo

See all specifications

Overview

Type: 1U
Weight: 5.4 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: No

Brand: Allied Telesis
Category: Network Switch
Model: AT-X310-26FP
Part number: AT-X310-26FP
Also known as: Allied Telesis AT-X310-26FP network switch Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

Specifications

61 specifications in 13 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Traffic classification	Yes
Traffic shaping	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Combo SFP ports quantity	2
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Policy-based routing	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Voice VLAN, Tagged VLAN

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	12.8 Gbit/s
Throughput	9.5 Mpps
Jumbo frames support	Yes
Jumbo frames	2000
Packet buffer memory	0.256 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client
IGMP snooping	Yes
AP access control	Yes
BPDU filtering/protection	Yes
DoS attack prevention	Yes
Loop protection	Yes
SSH/SSL support	Yes

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Grey
LED indicators	Yes
Wall mountable	Yes
Safety	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1

Power

Specification	Value
AC input voltage	90 - 260 V
AC input frequency	47/63 Hz
Power consumption (max)	50 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	24 W
Total Power over Ethernet (PoE) budget	370 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Heat dissipation	308 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	360 mm
Height	44 mm
Weight	5.4 kg

Packaging data

Specification	Value
Package type	Box
Package width	560 mm
Package depth	510 mm
Package height	150 mm
Package weight	6.9 kg

Certificates

Specification	Value
Certification	FCC part15 Subpart B / Class A, VCCI Class A FCC Class A EN55032 Class A CISPR 32 Class A RCM Class A
