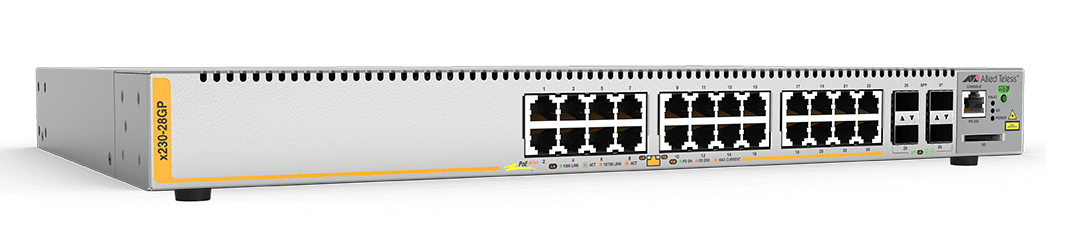

Allied Telesis AT-x230-28GP 1741R
Model AT-x230-28GP 1741RPart no. 1741REAN 4511427117753
60 specifications
- Memory256 MB
- Noise42 dB
- Type1U
- Weight4.7 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 256 MB
- Noise
- 42 dB
- Type
- 1U
- Weight
- 4.7 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-x230-28GP 1741R
- Part number
- 1741R
- EAN / UPC
- 4511427117753
- Also known as
- Allied Telesis AT-x230-28GP 1741R Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Specifications
60 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3 |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 2048 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| Latency (1 Gbps) | 4.3 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 4.3 pps |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCPv6 client, DHCP client |
| Access Control List (ACL) | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 42 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90 - 260 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 37 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 127 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 290 mm |
| Height | 44 mm |
| Weight | 4.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 530 mm |
| Package depth | 430 mm |
| Package height | 150 mm |
| Package weight | 6.35 kg |
What people say
Reviews & ratings
Allied Telesis AT-x230-28GP 1741R
No reviews yet
Be the first to tell others how Allied Telesis AT-x230-28GP 1741R works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis AT-x230-28GP 1741R
All network switch comparisons- Allied Telesis AT-x230-28GP 1741R vsAllied Telesis AT-IS230-10GP-80 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs
- Allied Telesis AT-x230-28GP 1741R vsAllied Telesis AT-GS920/24 network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U GreyCompare specs
- Allied Telesis AT-x230-28GP 1741R vsAllied Telesis AT-XS916MXS 3450RCompare specs

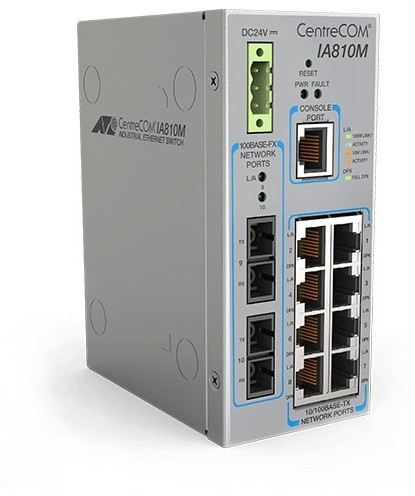

- Allied Telesis AT-x230-28GP 1741R vsAllied Telesis IA810M Managed L2 Fast Ethernet (10/100) GreyCompare specs
