Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White
Model AT-x230-18GT-50Part no. 990-005037-50EAN 767035208381
66 specifications
- Memory256 MB
- Noise29 dB
- Type1U
- Weight2.4 kg
- ColourWhite
- Switch typeManaged
Overview
- Memory
- 256 MB
- Noise
- 29 dB
- Type
- 1U
- Weight
- 2.4 kg
- Colour
- White
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-x230-18GT-50
- Part number
- 990-005037-50
- EAN / UPC
- 767035208381
- Also known as
- Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White
Specifications
66 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Compatible memory cards | SD, SDHC |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ad, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 40 Gbit/s |
| Throughput | 26.8 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Security algorithms | 3DES, 802.1x RADIUS, AES, DES, HTTPS, MD5, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, Telnet |
| Supported network protocols | IPv4 / IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 29 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 18 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 61 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, UL-EU RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White
No reviews yet
Be the first to tell others how Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White

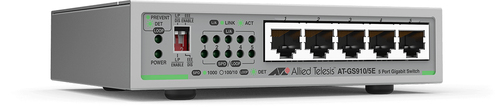

All network switch comparisons- Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White vsAllied Telesis AT-GS910/5-30 network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U GreyCompare specs
- Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White vsAllied Telesis AT-GS910/5E-30 network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U GreyCompare specs
- Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White vsAllied Telesis GS910/16 Unmanaged Gigabit Ethernet (10/100/1000) GreyCompare specs
- Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White vsAllied Telesis AT-GS910/16-30 network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U GreyCompare specs
- Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White vsLevelOne TURING 26-Port Web Smart Gigabit PoE Switch, 24 PoE Outputs, 2 x SFP/RJ45 ComboCompare specs
- Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White vsIntellinet 48-Port Gigabit Ethernet Web-Managed Switch with 4 SFP PortsCompare specs
- Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White vsLevelOne 50-Port Fast Ethernet Switch, 2 x Gigabit SFP/RJ45 ComboCompare specs

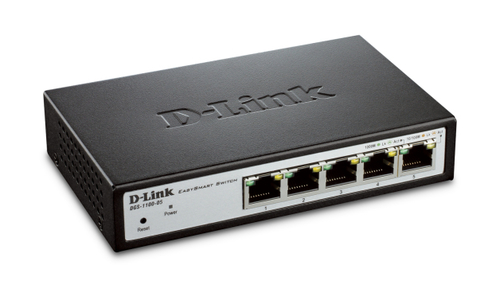

- Allied Telesis AT-x230-18GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U White vsD-Link DGS-1100-05 Managed L2 Gigabit Ethernet (10/100/1000) GreyCompare specs
