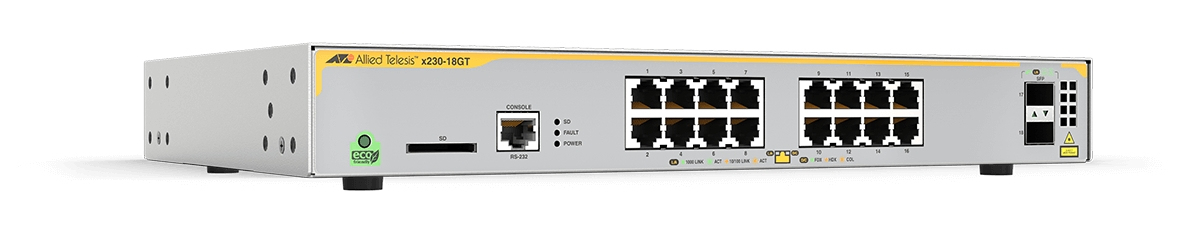

Allied Telesis AT-x230-18GT 3277R

Allied Telesis AT-x230-18GT 3277R

Model AT-x230-18GT 3277RPart no. 3277REAN 4511427155052

54 specifications
  • Memory256 MB
  • Noise18 dB
  • Weight2.4 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity16
See all specifications

Overview

Memory
256 MB
Noise
18 dB
Weight
2.4 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
16
Brand
Allied Telesis
Model
AT-x230-18GT 3277R
Part number
3277R
EAN / UPC
4511427155052
Also known as
Allied Telesis AT-x230-18GT 3277R Managed L3 Gigabit Ethernet (10/100/1000) Grey

Specifications

54 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes
System event logYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Combo SFP ports quantity2
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Port mirroringYes
Full duplexYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes

Data transmission

MAC address table16000 entries
Switching capacity36 Gbit/s
Throughput26.8 Mpps

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithms802.1x RADIUS

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Product colourGrey
LED indicatorsYes
SafetyUL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1

Performance

Internal memory256 MB
Noise level18 dB

Power

AC input voltage90 - 260 V
AC input frequency47/63 Hz
Power consumption (typical)18 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Heat dissipation61 BTU/h

Weight & dimensions

Width341 mm
Depth231 mm
Height44 mm
Weight2.4 kg

Packaging data

Package width430 mm
Package depth360 mm
Package height150 mm
Package weight4 kg
