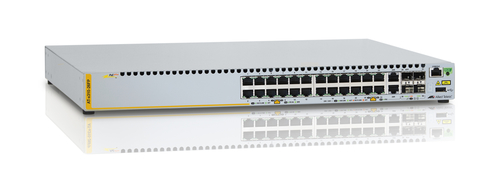

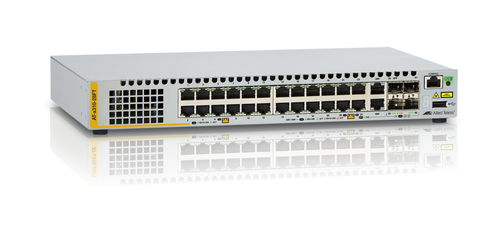

Allied Telesis AT-X230-10GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Allied Telesis AT-X230-10GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Model AT-X230-10GP-30EAN 767035202037

48 specifications
  • Memory256 MB
  • Weight2.4 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
See all specifications

Overview

Memory
256 MB
Weight
2.4 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
Brand
Allied Telesis
Model
AT-X230-10GP-30
Part number
AT-X230-10GP-30
EAN / UPC
767035202037
Also known as
Allied Telesis AT-X230-10GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Specifications

48 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes
System event logYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Combo SFP ports quantity2
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Port mirroringYes
Full duplexYes
Flow control supportYes
Link aggregationYes

Data transmission

MAC address table16000 entries
Switching capacity12.8 Gbit/s
Throughput6.5 Mpps

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithms802.1x RADIUS

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Product colourGrey
LED indicatorsYes
SafetyUL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1

Performance

Internal memory256 MB

Power

AC input voltage90 - 260 V
AC input frequency47/63 Hz
Power consumption (typical)24 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Heat dissipation81 BTU/h

Weight & dimensions

Width340 mm
Depth215 mm
Height44 mm
Weight2.4 kg
