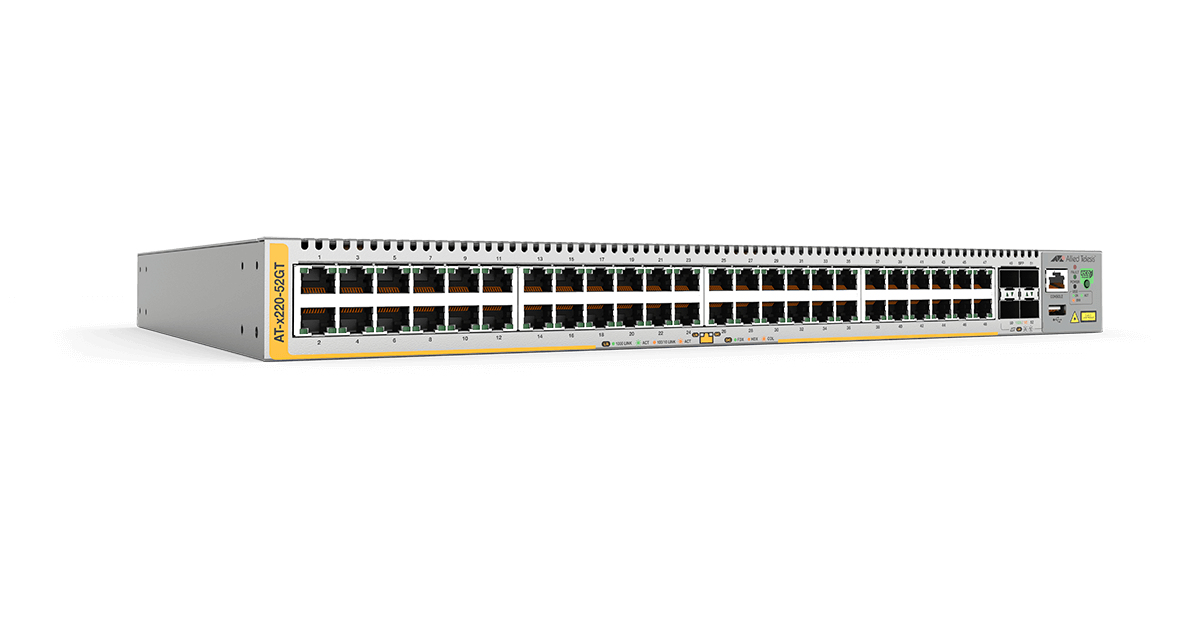

AT-x220-52GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Model AT-x220-52GT-50Part no. 990-005903-50EAN 767035212340
83 specifications
- Memory512 MB
- Noise39 dB
- Type1U
- Weight4.5 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 512 MB
- Noise
- 39 dB
- Type
- 1U
- Weight
- 4.5 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-x220-52GT-50
- Part number
- 990-005903-50
- EAN / UPC
- 767035212340
- Also known as
- Allied Telesis AT-x220-52GT-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Specifications
83 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| Full duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, VLAN mapping |
| Number of VLANs | 4094 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-BX, 100BASE-FX, 1000BASE-SX, 1000BASE-X, 1000BASE‑LX, 1000BASE‑ZX |
| Wavelength | 1310 nm |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.4 Mpps |
| Latency (10-100 Mbps) | 35.1 µs |
| Latency (1 Gbps) | 5.5 µs |
| Latency (10 Gbps) | 2.6 µs |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 3 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, EAP, HTTPS, SSH, SSH-2, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| IPv4 multicast entries | 16 |
| IPv6 multicast entries | 16 |
| Multicast Listener Discovery (MLD) snooping | MLDv1 and v2 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | AMF MIB, SNMP, IEEE 802.1AB, MIB, RIPv2 |
| Routing protocols | RIP, RIP-1, RIP-2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Electromagnetic compatibility | EN55022 class A, FCC class A, VCCI class A, |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 39 dB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power consumption (max) | 47 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 160 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 323 mm |
| Height | 44 mm |
| Weight | 4.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 575 mm |
| Package depth | 445 mm |
| Package height | 150 mm |
| Package weight | 6.4 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL, UL-EU, UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517.62.0050 |
