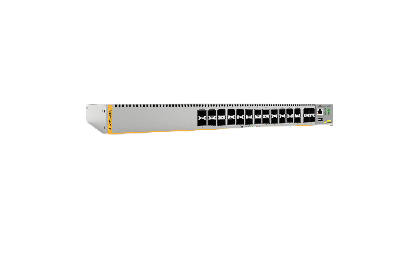

AT-X220-28GS network switch Managed L3 1U Grey
Model AT-X220-28GS
72 specifications
- Memory512 MB
- Noise45 dB
- Type1U
- Weight4.3 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 512 MB
- Noise
- 45 dB
- Type
- 1U
- Weight
- 4.3 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-X220-28GS
- Part number
- AT-X220-28GS
- Also known as
- Allied Telesis AT-X220-28GS network switch Managed L3 1U Grey
Specifications
72 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Installed SFP modules quantity | 28 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Voice VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| Latency (10-100 Mbps) | 6.9 µs |
| Latency (1 Gbps) | 3.7 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | IEEE 802.1x |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, MD5, SHA-1, SHA-2, SHA-256, SNMP, SSH, SSH-2 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
| Routing protocols | IP, RIP |
| IPv4 & IPv6 features | IPv6 Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 45 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.6 A |
| Power consumption (max) | 75 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 256 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 324 mm |
| Height | 44 mm |
| Weight | 4.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 570 mm |
| Package depth | 430 mm |
| Package height | 150 mm |
| Package weight | 6.3 kg |
