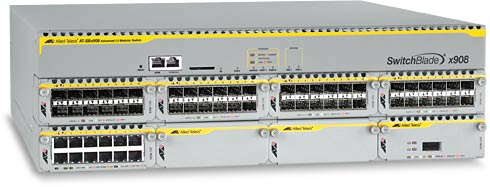

Allied Telesis AT-SBX908-00 Managed L3 Power over Ethernet (PoE)
Model AT-SBX908-00Part no. 990-001305-00
33 specifications
- Memory512 MB
- Speed360 Gbit/s
- ConnectivityWired
- Weight14.3 kg
- Switch typeManaged
- Power connectorDC-in jack
Overview
- Memory
- 512 MB
- Speed
- 360 Gbit/s
- Connectivity
- Wired
- Weight
- 14.3 kg
- Switch type
- Managed
- Power connector
- DC-in jack
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-SBX908-00
- Part number
- 990-001305-00
- Also known as
- Allied Telesis AT-SBX908-00 Managed L3 Power over Ethernet (PoE)
Specifications
33 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 360 Gbit/s |
| Maximum data transfer rate | 360 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 185000 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 700 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 357 Mbit/s |
| Dimensions (WxDxH) | 440 x 456 x 132 mm |
| Connectivity technology | Wired |
| Authentication method | 802.1x, NAC, DHCP, BPDU, STP, RADIUS server |
| Input frequency | 47/63 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 14.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL, TUV |
