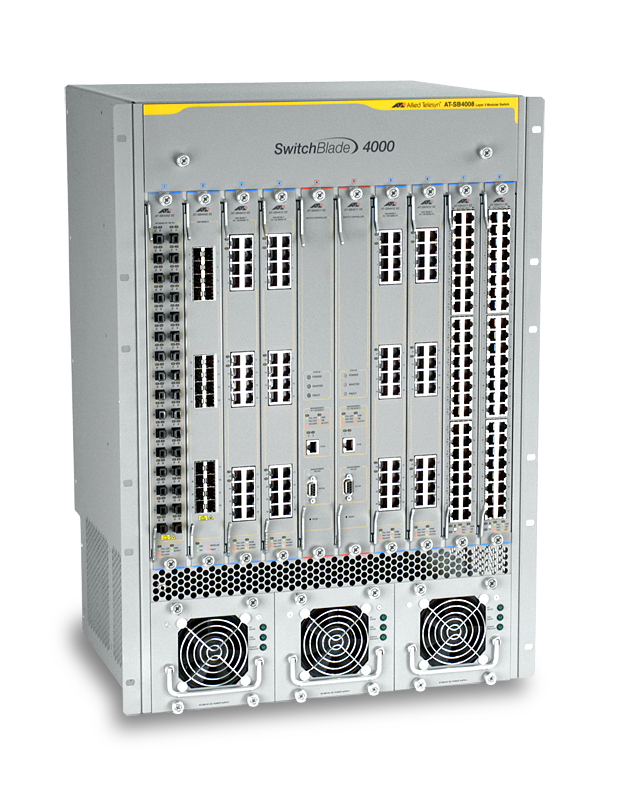

Allied Telesis AT-SB4108 network switch Managed L3 Grey
Model AT-SB4108
55 specifications
- ProcessorIBM 750L
- Memory256 MB
- Speed384 Gbit/s
- ConnectivityWired
- Noise60 dB
- Weight19 kg
Overview
- Processor
- IBM 750L
- Memory
- 256 MB
- Speed
- 384 Gbit/s
- Connectivity
- Wired
- Noise
- 60 dB
- Weight
- 19 kg
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-SB4108
- Part number
- AT-SB4108
- Also known as
- Allied Telesis AT-SB4108 network switch Managed L3 Grey
Specifications
55 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 192 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1v, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4096 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber type | Single-mode |
| Transmission distance (max) | 80 km |
| Wavelength | 1550 nm |
Data transmission
| Specification | Value |
|---|---|
| Supported data transfer rates | 10/100/1000/10000 |
| Switching capacity | 384 Gbit/s |
| Throughput | 286 Mpps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 384 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, SNMPv2 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| LED indicators | Yes |
| Safety | UL60950, CAN/CSA-C22.2NO. 60950- 00, No. 950-M25 AS/NZ3260 EN60950,ACA TS001, IEC60950 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | IBM 750L |
| Processor frequency | 500 MHz |
| Memory type | SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 60 dB |
| Mean time between failures (MTBF) | 188560 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 60 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 2, 3, 4 |
| Dimensions (WxDxH) | 440 x 343 x 666 mm |
| Connectivity technology | Wired |
| Networking features | Fast Ethernet, Gigabit Ethernet |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating altitude | 0 - 3048 m |
| Operating temperature (T-T) | 32 - 104 °F |
| Relative humidity | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 19 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 29.6 kg |
