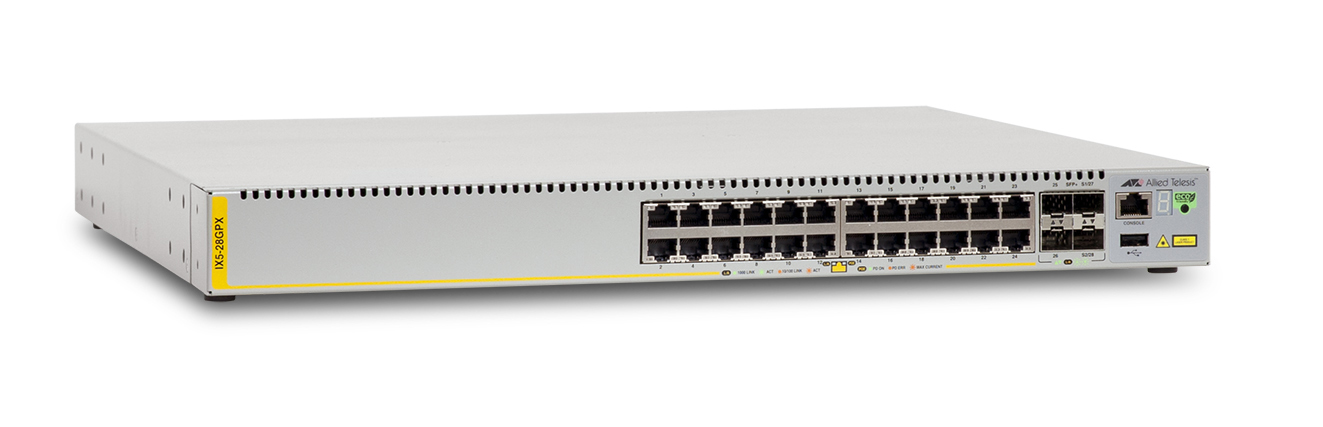

1000) Power over Ethernet (PoE) 1U Grey

Model AT-IX5-28GPXPart no. 990-003847-00EAN 767035199542

74 specifications

Memory512 MB
Noise52 dB
Type1U
Weight5.4 kg
ColourGrey
Switch typeManaged

See all specifications

Overview

Memory: 512 MB
Noise: 52 dB
Type: 1U
Weight: 5.4 kg
Colour: Grey
Switch type: Managed

Brand: Allied Telesis
Category: Network Switch
Model: AT-IX5-28GPX
Part number: 990-003847-00
EAN / UPC: 767035199542
Also known as: Allied Telesis AT-IX5-28GPX Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Specifications

74 specifications in 14 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
MIB support	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	2
Console port	RJ-45
USB 2.0 ports quantity	1

Network

Specification	Value
Networking standards	IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
Port mirroring	Yes
Full duplex	Yes
Auto-negotiation	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Stacked VLAN, Private VLAN, Voice VLAN, Tagged VLAN

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.2 Mpps
Latency (10-100 Mbps)	14.4 µs
Latency (1 Gbps)	4.4 µs
Latency (10 Gbps)	3.1 µs
Static route	Yes
Jumbo frames support	Yes
Packet buffer memory	2 MB

Security

Specification	Value
DHCP features	DHCPv6 client, DHCP server, DHCPv6 relay, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
BPDU filtering/protection	Yes
DoS attack prevention	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	3DES, 802.1x RADIUS, AES, DES, EAP, HTTPS, MD5, PEAP, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS

Multicast features

Specification	Value
Multicast support	Yes
Multicast MAC address table	1000 entries

Protocols

Specification	Value
Management protocols	SNMPv1, v2c and v3, Telnet, DHCP
IPv4 & IPv6 features	Dual stack IPv4/IPv6

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Grey
LED indicators	Yes
Cable management	Yes

Performance

Specification	Value
Physical stacking (units)	4
Memory type	DDR-SDRAM
Internal memory	512 MB
Flash memory	64 MB
Noise level	52 dB

Power

Specification	Value
Number of power supply units	1
AC input voltage	90 - 260 V
AC input frequency	47/63 Hz
Power consumption (typical)	81 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	370 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Heat dissipation	276 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	480 mm
Height	44 mm
Weight	5.4 kg

Logistics data

Specification	Value
Country of origin	China
