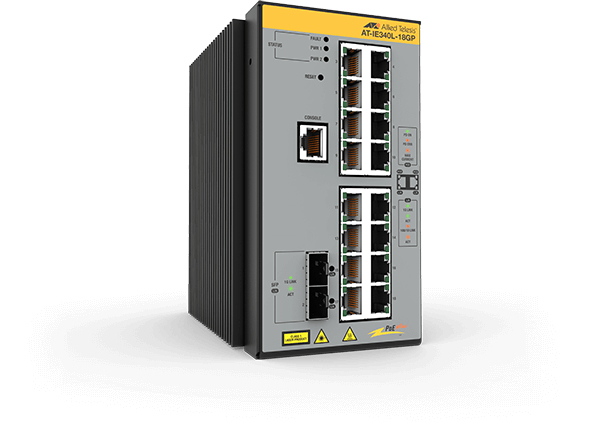

Allied Telesis AT-IE340L-18GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

AT-IE340L-18GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Model AT-IE340L-18GP-80Part no. 990-007006-80EAN 767035217871

69 specifications

Memory512 MB
Weight2.34 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity16
Networking standardsIEEE 802.1x

See all specifications

Overview

Memory: 512 MB
Weight: 2.34 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 16
Networking standards: IEEE 802.1x

Brand: Allied Telesis
Category: Network Switch
Model: AT-IE340L-18GP-80
Part number: 990-007006-80
EAN / UPC: 767035217871
Also known as: Allied Telesis AT-IE340L-18GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Specifications

69 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2
Console port	RJ-45
USB 2.0 ports quantity	1

Network

Specification	Value
Networking standards	IEEE 802.1x
10G support	No
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN
Number of VLANs	4094

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	36 Gbit/s
Forwarding rate	26.7 Mpps
Latency (10-100 Mbps)	7.8 µs
Latency (1 Gbps)	3.4 µs
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN
BPDU filtering/protection	Yes
MAC address filtering	Yes
Password protection	Yes

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Routing protocols	BGP, OSPF, RIP

Design

Specification	Value
Rack mounting	No
Stackable	No
Product colour	Grey
Housing material	Aluminium, Metal
LED indicators	Yes
DIN rail mounting	Yes
International Protection (IP) code	IP30
Wall mountable	Yes
Electromagnetic compatibility	AS/NZS CISPR 32 A, CISPR 32 A, EN 55032 A, EN 61000-6-4 A, FCC 47 CFR 15 B A, ICES 003 6 A, VCCI A

Performance

Specification	Value
Memory type	DDR-SDRAM
Internal memory	512 MB
Flash memory	128 MB
Export Control Classification Number (ECCN)	5A992C

Power

Specification	Value
Power supply included	No
Power consumption (max)	271 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	15 W
Total Power over Ethernet (PoE) budget	240 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 3000 m
Heat dissipation	105.8 BTU/h

Weight & dimensions

Specification	Value
Width	91 mm
Depth	139 mm
Height	153 mm
Weight	2.34 kg

Certificates

Specification	Value
Certification	EN 50022, EN 60715 CE, FCC, ICES, RCM, TEC, UL, VCCI RoHS, China-RoHS, WEEE

Logistics data

Specification	Value
Harmonized System (HS) code	8517.62.0050
