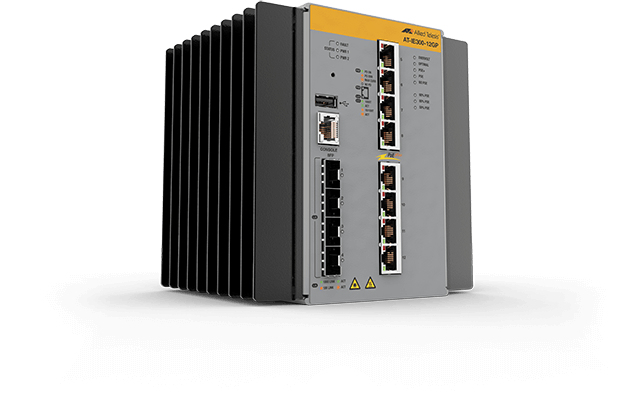

AT-IE300-12GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey
Model AT-IE300-12GP-80Part no. 990-004755-80EAN 767035207285
40 specifications
- Memory512 MB
- Weight2 kg
- ColourBlack, Grey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
- 10G supportNo
Overview
- Memory
- 512 MB
- Weight
- 2 kg
- Colour
- Black, Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- 10G support
- No
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-IE300-12GP-80
- Part number
- 990-004755-80
- EAN / UPC
- 767035207285
- Also known as
- Allied Telesis AT-IE300-12GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey
Specifications
40 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| ARP inspection | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 17.8 Mpps |
| Latency (10-100 Mbps) | 7.9 µs |
| Latency (10 Gbps) | 54 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| International Protection (IP) code | IP30 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 64 MB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| DC input voltage | 48 V |
| Power consumption (max) | 320 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 146 mm |
| Depth | 127 mm |
| Height | 152 mm |
| Weight | 2 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, China RoHS, WEEE, CE, FCC |
