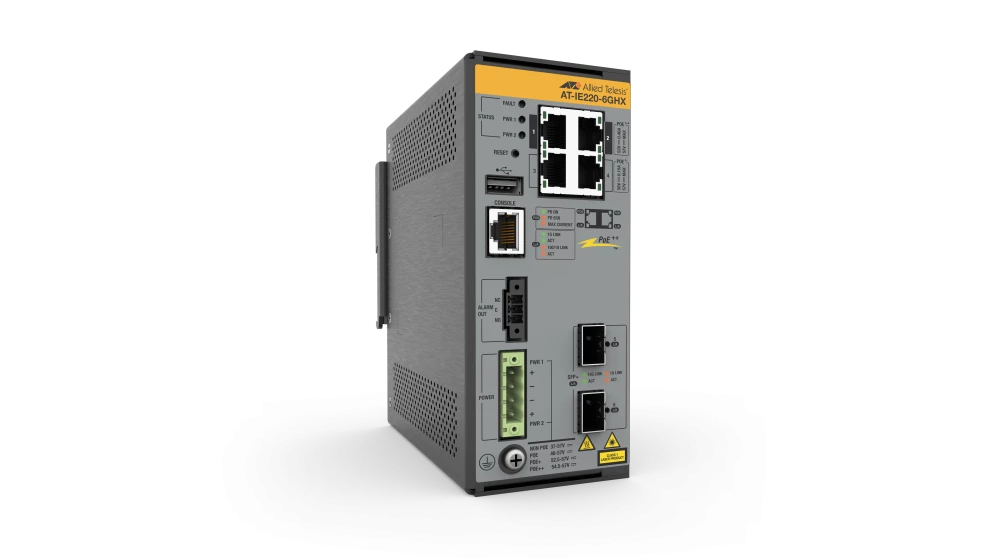

AT-IE220-6GHX-80 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Model AT-IE220-6GHX-80Part no. 990-007874-80EAN 767035226408
53 specifications
- Memory512 MB
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- MAC address table16000 entries
Overview
- Memory
- 512 MB
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-IE220-6GHX-80
- Part number
- 990-007874-80
- EAN / UPC
- 767035226408
- Also known as
- Allied Telesis AT-IE220-6GHX-80 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
53 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 6 |
| Combo SFP ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ac, IEEE 802.3bt, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1v, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 48 Gbit/s |
| Throughput | 37.7 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1/v2c/v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Grey |
| Housing material | Aluminium, Metal |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Export Control Classification Number (ECCN) | 5A992C |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| Input voltage | 37 - 57 V |
| Power consumption (max) | 17.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 137 mm |
| Height | 155 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517.62.0050 |
