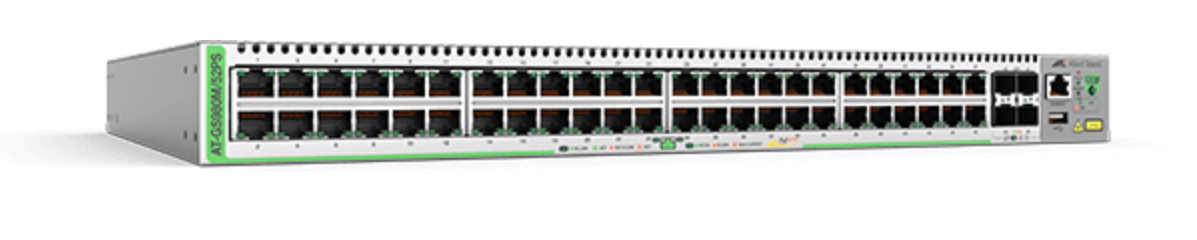

Allied Telesis AT-GS980M/52PS-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

AT-GS980M/52PS-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Model AT-GS980M/52PS-50Part no. 990-006128-50EAN 767035215433

86 specifications

Memory256 MB
Noise42 dB
Weight5.8 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity48

See all specifications

Overview

Memory: 256 MB
Noise: 42 dB
Weight: 5.8 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 48

Brand: Allied Telesis
Category: Network Switch
Model: AT-GS980M/52PS-50
Part number: 990-006128-50
EAN / UPC: 767035215433
Also known as: Allied Telesis AT-GS980M/52PS-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Specifications

86 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	SNMP MIB

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Fiber optic connector	SFP

Network

Specification	Value
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4094

Optical fiber

Specification	Value
Fiber ethernet cabling technology	100BASE-X, 1000BASE-X
Switching optical modules type	100 Gigabit Ethernet

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	104 Gbit/s
Forwarding rate	77.4 Mpps
Latency (10-100 Mbps)	6.8 µs
Latency (1 Gbps)	3.8 µs
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP client, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type	AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
Password protection	Yes
SSH/SSL support	Yes
Security algorithms	3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	SNMP
Routing protocols	RIP, RIP-2

Design

Specification	Value
Rack mounting	Yes
Product colour	Grey
LED indicators	Yes
Wall mountable	Yes
Electromagnetic compatibility	EN55024

Performance

Specification	Value
Memory type	DDR-SDRAM
Internal memory	256 MB
Flash memory	64 MB
Noise level	42 dB

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1.0 A
Power consumption (typical)	48 W
Power consumption (max)	909 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE) power per port	48 W
Total Power over Ethernet (PoE) budget	24 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m
Heat dissipation	164 BTU/h

Weight & dimensions

Specification	Value
Width	441 mm
Depth	359 mm
Height	44 mm
Weight	5.8 kg

Packaging data

Specification	Value
Package width	575 mm
Package depth	520 mm
Package height	150 mm
Package weight	7.8 kg

Certificates

Specification	Value
Certification	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, UL-EU RoHS

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
