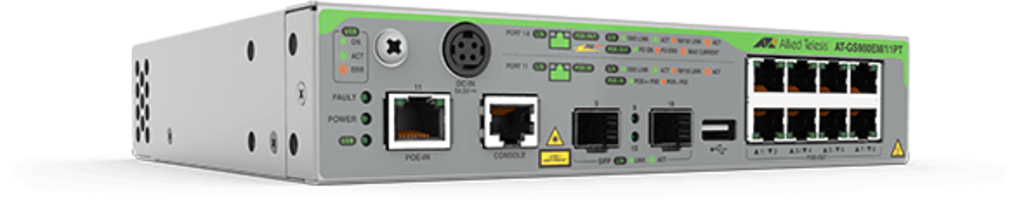

AT-GS980EM/11PT-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Model AT-GS980EM/11PT-50Part no. 990-006932-50EAN 767035217789
68 specifications
- Memory512 MB
- Type1U
- Weight1.6 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Memory
- 512 MB
- Type
- 1U
- Weight
- 1.6 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-GS980EM/11PT-50
- Part number
- 990-006932-50
- EAN / UPC
- 767035217789
- Also known as
- Allied Telesis AT-GS980EM/11PT-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Specifications
68 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 16.4 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| BPDU filtering/protection | Yes |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, PEAP, SHA-1, SHA-2, SHA-256, SSH, SSL/TLS, TLS, TTLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, RIP, RIP-2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Export Control Classification Number (ECCN) | 5A992C |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power consumption (max) | 98 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) pass through | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 75 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 180 mm |
| Height | 42.5 mm |
| Weight | 1.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 417 mm |
| Package depth | 336 mm |
| Package height | 151 mm |
| Package weight | 3.5 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517.62.0050 |
