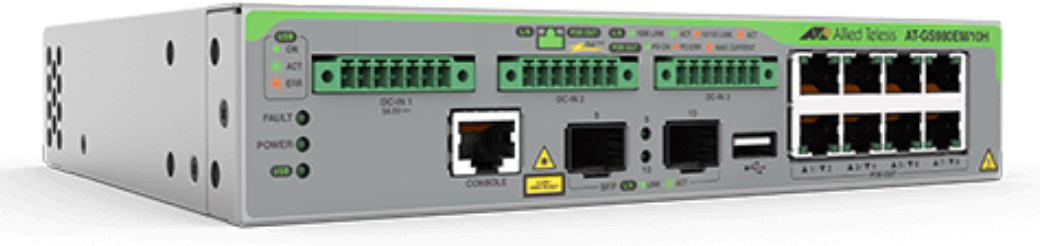

Allied Telesis AT-GS980EM/10H Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

AT-GS980EM/10H Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Model AT-GS980EM/10HPart no. 990-006949-00EAN 767035217796

70 specifications

Memory512 MB
Type1U
Weight1.6 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity8

See all specifications

Overview

Memory: 512 MB
Type: 1U
Weight: 1.6 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 8

Brand: Allied Telesis
Category: Network Switch
Model: AT-GS980EM/10H
Part number: 990-006949-00
EAN / UPC: 767035217796
Also known as: Allied Telesis AT-GS980EM/10H Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Specifications

70 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2

Network

Specification	Value
Networking standards	IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Port mirroring	Yes
Full duplex	Yes
Policy-based routing	Yes
Flow control support	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN
Number of VLANs	4094

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	24 Gbit/s
Forwarding rate	14.9 Mpps
Latency (10-100 Mbps)	5.4 µs
Latency (1 Gbps)	3 µs
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL)	Yes
Authentication	Guest VLAN
Authentication type	AAA
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
Password protection	Yes
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256

Multicast features

Specification	Value
Multicast support	Yes
Multicast MAC address table	2000 entries

Protocols

Specification	Value
Routing protocols	OSPF, RIP

Design

Specification	Value
Rack mounting	Yes
Stackable	No
Form factor	1U
Product colour	Grey
LED indicators	Yes
Electromagnetic compatibility	EN55032 A, FCC A, VCCI A, ICES-003 A

Performance

Specification	Value
Memory type	DDR3-SDRAM
Internal memory	512 MB
Flash memory	128 MB
Export Control Classification Number (ECCN)	5A992C

Power

Specification	Value
Power supply included	No
AC input voltage	100 - 240 V

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	90 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m

Weight & dimensions

Specification	Value
Width	210 mm
Depth	180 mm
Height	42.5 mm
Weight	1.6 kg

Packaging data

Specification	Value
Package width	417 mm
Package depth	336 mm
Package height	151 mm
Package weight	2.7 kg

Certificates

Specification	Value
Certification	EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
