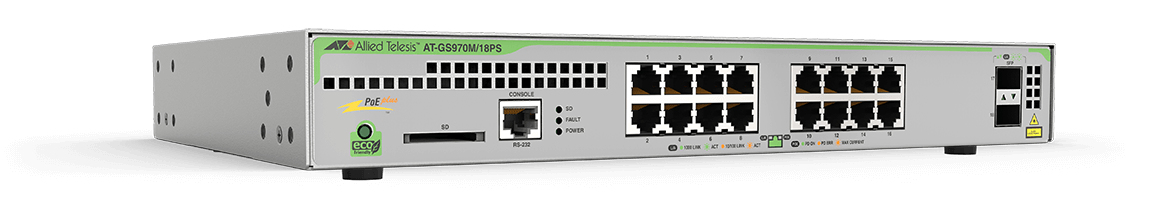

Allied Telesis AT-GS970M/18PS network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Model AT-GS970M/18PS
57 specifications
- Memory256 MB
- Noise34 dB
- Type1U
- Weight3 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 256 MB
- Noise
- 34 dB
- Type
- 1U
- Weight
- 3 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-GS970M/18PS
- Part number
- AT-GS970M/18PS
- Also known as
- Allied Telesis AT-GS970M/18PS network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Specifications
57 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| MIB support | SNMP MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3 |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 2048 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 36 Gbit/s |
| Latency (10-100 Mbps) | 7.9 µs |
| Latency (1 Gbps) | 3.4 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 34 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 247 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 72 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4.35 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
