Allied Telesis AT-GS970M/10PS-30 network switch Managed L3
10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Model AT-GS970M/10PS-30EAN 767035211558
52 specifications
- Memory256 MB
- Noise33 dB
- Weight2.1 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Memory
- 256 MB
- Noise
- 33 dB
- Weight
- 2.1 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-GS970M/10PS-30
- Part number
- AT-GS970M/10PS-30
- EAN / UPC
- 767035211558, 7670352115580
- Also known as
- Allied Telesis AT-GS970M/10PS-30 network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Specifications
52 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3 |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 2048 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Latency (10-100 Mbps) | 7.8 µs |
| Latency (1 Gbps) | 3.4 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 33 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 124 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 55 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 275 mm |
| Height | 42.5 mm |
| Weight | 2.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 3.45 kg |
Compare Allied Telesis AT-GS970M/10PS-30 network switch Managed L3
Compare any products- Allied Telesis AT-GS970M/10PS-30 network switch Managed L3 vsAllied Telesis AT-GS970M/18PS-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs
- Allied Telesis AT-GS970M/10PS-30 network switch Managed L3 vsAllied Telesis AT-GS970M/28PS-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs

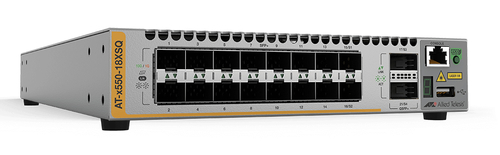

- Allied Telesis AT-GS970M/10PS-30 network switch Managed L3 vsAllied Telesis AT-X550-18XSQ-30 network switch Managed L3Compare specs

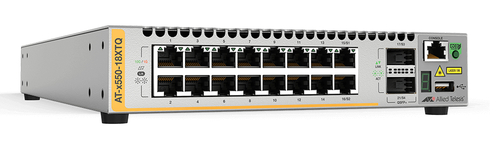

- Allied Telesis AT-GS970M/10PS-30 network switch Managed L3 vsAllied Telesis AT-X550-18XTQ-30 network switch Managed L3Compare specs
- Allied Telesis AT-GS970M/10PS-30 network switch Managed L3 vsLevelOne 26-Port Gigabit PoE Switch, 2 x SFP, 24 PoE Outputs, 802.3at/af PoECompare specs
- Allied Telesis AT-GS970M/10PS-30 network switch Managed L3 vsLevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoECompare specs
- Allied Telesis AT-GS970M/10PS-30 network switch Managed L3 vsLevelOne 8-Port Fast Ethernet PoE Industrial Switch, 8 PoE Outputs, 802.3at/af PoECompare specs

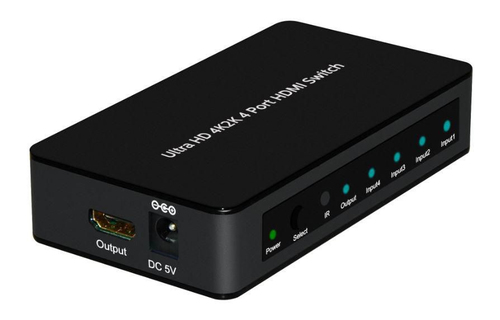

- Allied Telesis AT-GS970M/10PS-30 network switch Managed L3 vsMicroconnect MC-HMSW401AP network switch BlackCompare specs
