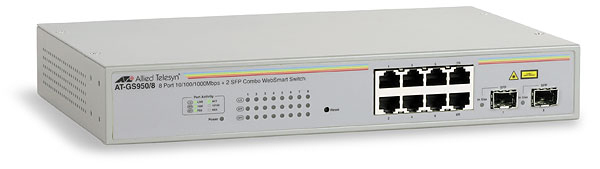

Allied Telesis AT-GS950/8POE network switch Managed Power over Ethernet (PoE)
Model AT-GS950/8POEPart no. AT-GS950/8POE-10EAN 7670351901368
29 specifications
- Memory32 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight2.54 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Memory
- 32 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 2.54 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-GS950/8POE
- Part numbers
- AT-GS950/8POE-10, AT-GS950/8POE, AT-GS950/8POE-50, AT-GS950/8POE-30
- EAN / UPC
- 7670351901368, 767035190174, 7670351901504, 767035190150 +2 more
- Also known as
- Allied Telesis AT-GS950/8POE network switch Managed Power over Ethernet (PoE)
Specifications
29 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
Performance
| Specification | Value |
|---|---|
| Internal memory | 32 MB |
| Flash memory | 8 MB |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 320 x 230 x 43 mm |
| Connectivity technology | Wired |
| Packet transfer speed | 1488000 pps |
| Power requirements | 100-240V AC, 50/60H |
| Connectivity LEDs | Yes |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.54 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 FCC/EN55022 Class B VCCI Class B C-Tick EN60950 (TUV) EN55024 CE |
