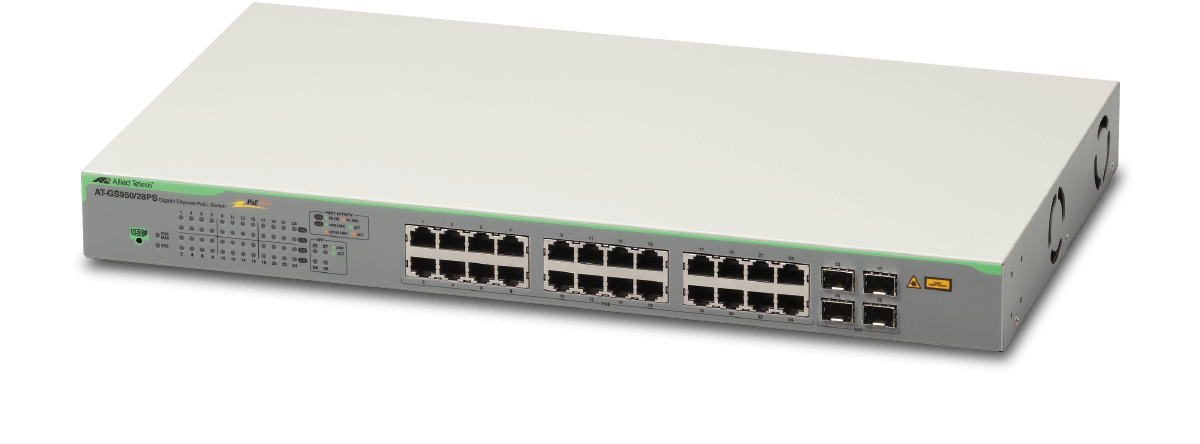

1000) Power over Ethernet (PoE) 1U Grey

Model AT-GS950/28PS-10EAN 767035208695

74 specifications

Memory64 MB
Type1U
Weight3.6 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24

See all specifications

Overview

Memory: 64 MB
Type: 1U
Weight: 3.6 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24

Brand: Allied Telesis
Category: Network Switch
Model: AT-GS950/28PS-10
Part numbers: AT-GS950/28PS-10, AT-GS950-28PS-V2-10
EAN / UPC: 767035208695, 767035219202
Also known as: Allied Telesis AT-GS950/28PS-10 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Specifications

74 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Fiber optic connector	SFP

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Yes
IP routing	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs	256

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Forwarding rate	41.65 Mpps
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	10000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet buffer memory	1 MB

Security

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	240
IGMP snooping	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	SNMP, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Grey
LED indicators	Yes

Performance

Specification	Value
Memory type	DRAM
Internal memory	64 MB
Flash memory	16 MB
Firmware upgradeable	Yes

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	238 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	185 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	812.09 BTU/h

Weight & dimensions

Specification	Value
Width	450 mm
Depth	250 mm
Height	44 mm
Weight	3.6 kg

Packaging content

Specification	Value
Cables included	AC
Quick start guide	Yes
Manual	Yes

Packaging data

Specification	Value
Included power plug types	US
Mounting brackets included	Yes
Rubber feet	Yes

Certificates

Specification	Value
Certification	UL60950-1 2nd edition (UL) FCC/EN55022/CISPR 22 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE Mark CSA / CUL
