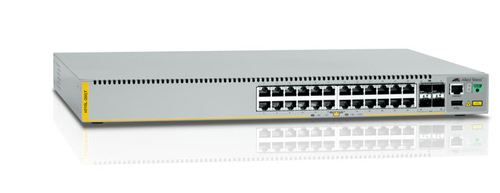

Allied Telesis AT-GS924M-50 Managed L2 Gigabit Ethernet (10/100/1000) Grey

Allied Telesis AT-GS924M-50 Managed L2 Gigabit Ethernet (10/100/1000) Grey

Model AT-GS924M-50Part no. 990-004270-50EAN 767035203287

55 specifications
  • Memory64 MB
  • Weight2.7 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity20
  • 10G supportNo
See all specifications

Overview

Memory
64 MB
Weight
2.7 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
20
10G support
No
Brand
Allied Telesis
Model
AT-GS924M-50
Part number
990-004270-50
EAN / UPC
767035203287, 3540260135755
Also known as
Allied Telesis AT-GS924M-50 Managed L2 Gigabit Ethernet (10/100/1000) Grey

Specifications

55 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportRFC1213, RFC3635, RFC2863, RFC1493, RFC2674

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity20
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity4
Console portRJ-45
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-T, 10BASE-T
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs256

Data transmission

MAC address table8000 entries
Switching capacity48 Gbit/s
Throughput35.7 Mpps
Latency (10-100 Mbps)60.9 µs
Latency (1 Gbps)4 µs
Jumbo frames supportYes
Packet buffer memory0.5 MB

Security

DHCP featuresDHCPv6 client, DHCP client
IGMP snoopingYes
Security algorithmsEAP-TTLS, MD5, PEAP, SSL/TLS

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMP, Telnet, MLD
Supported network protocolsSNTP, IGMP

Design

Rack mountingYes
Product colourGrey
LED indicatorsYes
SafetyUL60950-1, CSA-C22.2 No. 60950-1

Performance

Internal memory64 MB
Flash memory16 MB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)25 W
Power consumption (max)30 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 80%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width440 mm
Depth210 mm
Height440 mm
Weight2.7 kg
