Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey
Model AT-GS920/24-50Part no. 990-005521-50EAN 767035210766
33 specifications
- Weight2.1 kg
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 2.1 kg
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-GS920/24-50
- Part number
- 990-005521-50
- EAN / UPC
- 767035210766
- Also known as
- Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey
Specifications
33 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-TX |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Grey |
| LED indicators | Yes |
| Safety | UL60950-1, CSA C22.2 No.60950-1-07, IEC60950-1 |
Performance
| Specification | Value |
|---|---|
| Buffer size | 524 KB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.2 A |
| Power consumption (max) | 18 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 341 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
Compare Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey

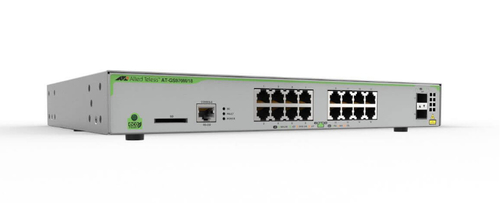

Compare any products- Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey vsAllied Telesis AT-GS970M/18-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U GreyCompare specs

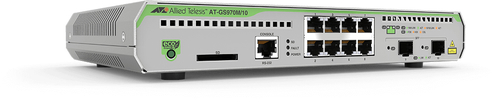

- Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey vsAllied Telesis AT-GS970M/10-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, GreyCompare specs
- Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey vsAllied Telesis AT-X230-10GT-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) GreyCompare specs

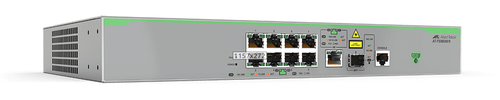

- Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey vsAllied Telesis AT-FS980M/9-10 network switch Managed L3 Fast Ethernet (10/100) GreyCompare specs

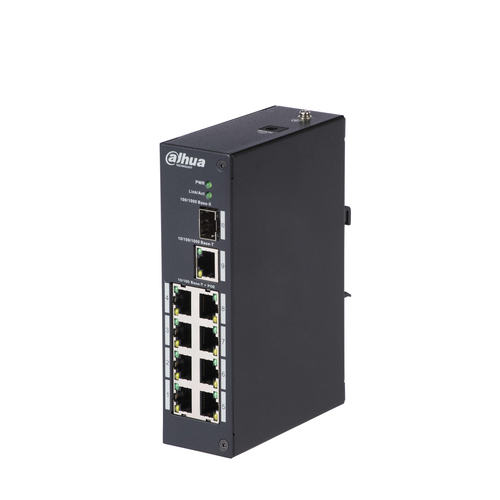

- Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey vsDahua Technology PFS3110-8P-96 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) BlackCompare specs

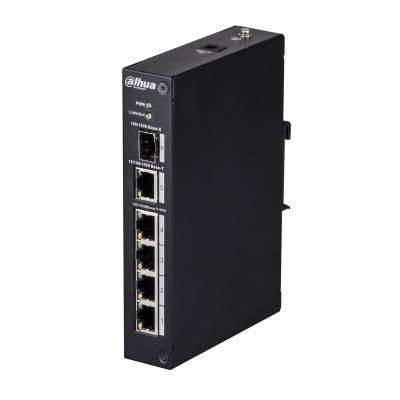

- Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey vsDahua Technology PFS3106-4P-60 network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) BlackCompare specs
- Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey vsTP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+Compare specs

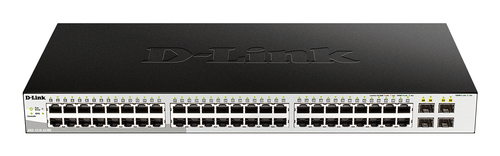

- Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey vsD-Link DGS-1210-52/ME network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
