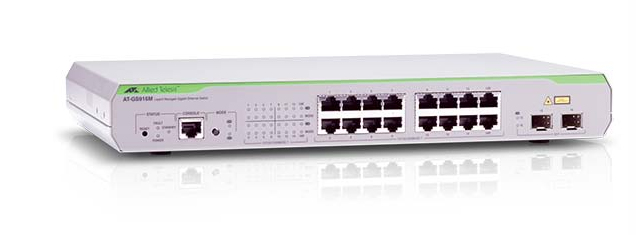

Allied Telesis AT-GS916M-50 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey

Allied Telesis AT-GS916M-50 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey

Model AT-GS916M-50Part no. 990-004269-50

54 specifications
  • Memory64 MB
  • Type1U
  • Weight2 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity16
See all specifications

Overview

Memory
64 MB
Type
1U
Weight
2 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
16
Brand
Allied Telesis
Model
AT-GS916M-50
Part number
990-004269-50
Also known as
Allied Telesis AT-GS916M-50 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey

Specifications

54 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportRFC1213, RFC3635, RFC2863, RFC1493, RFC2674

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity14
Combo SFP ports quantity2
Console portRJ-45
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-T, 10BASE-T
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs256

Data transmission

MAC address table8000 entries
Switching capacity36 Gbit/s
Throughput23.8 Mpps
Latency (10-100 Mbps)62.8 µs
Latency (1 Gbps)4.2 µs
Jumbo frames supportYes
Packet buffer memory512 MB

Security

DHCP featuresDHCP client
IGMP snoopingYes
Security algorithmsEAP-TTLS, MD5, PEAP, SSL/TLS

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMP, Telnet

Design

Rack mountingYes
Form factor1U
Product colourGrey
LED indicatorsYes
SafetyUL60950-1, CSA-C22.2 No. 60950-1

Performance

Internal memory64 MB
Flash memory16 MB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)17 W
Power consumption (max)22 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 80%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width341 mm
Depth210 mm
Height44 mm
Weight2 kg
