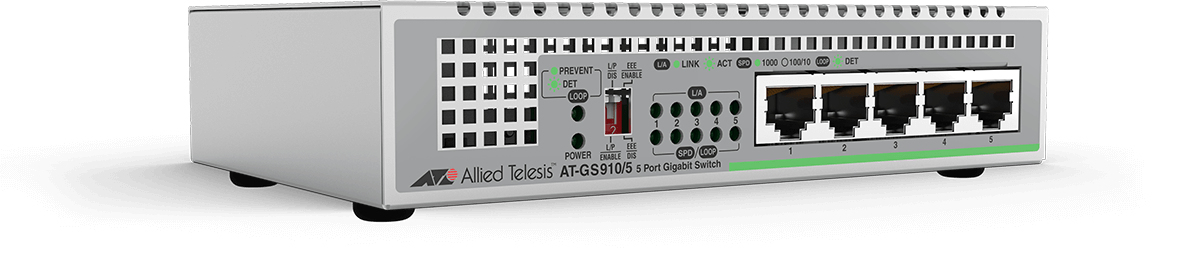

Allied Telesis AT-GS910/5 2313R
Model AT-GS910/5 2313RPart no. 2313REAN 4511427132817
48 specifications
- Type1U
- Weight500 g
- ColourGrey
- Web-based managementYes
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 500 g
- Colour
- Grey
- Web-based management
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-GS910/5 2313R
- Part number
- 2313R
- EAN / UPC
- 4511427132817
- Also known as
- Allied Telesis AT-GS910/5 2313R Gigabit Ethernet (10/100/1000) 1U Grey
Specifications
48 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Throughput | 7.4 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Security
| Specification | Value |
|---|---|
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
| Safety | UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB) |
Performance
| Specification | Value |
|---|---|
| Buffer size | 128 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.1 A |
| Power consumption (max) | 3.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 105 mm |
| Height | 35 mm |
| Weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Included power plug types | JP |
Certificates
| Specification | Value |
|---|---|
| Certification | EAC certification, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022 |
What people say
Reviews & ratings
Allied Telesis AT-GS910/5 2313R
No reviews yet
Be the first to tell others how Allied Telesis AT-GS910/5 2313R works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis AT-GS910/5 2313R
All network switch comparisons- Allied Telesis AT-GS910/5 2313R vsAllied Telesis AT-GS910/24 2332RCompare specs
- Allied Telesis AT-GS910/5 2313R vsAllied Telesis AT-x230-18GT 3277RCompare specs
- Allied Telesis AT-GS910/5 2313R vsAllied Telesis AT-GS910/8E 2330RCompare specs
- Allied Telesis AT-GS910/5 2313R vsAllied Telesis AT-x510-52GTX 1020RCompare specs
- Allied Telesis AT-GS910/5 2313R vsNETGEAR 52-Port PoE Gigabit Ethernet Smart Switch (GS752TPP)Compare specs
- Allied Telesis AT-GS910/5 2313R vsNETGEAR GS108LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, GreyCompare specs
- Allied Telesis AT-GS910/5 2313R vsDell S-Series S4112F-ON Managed L2+/L3 1UCompare specs

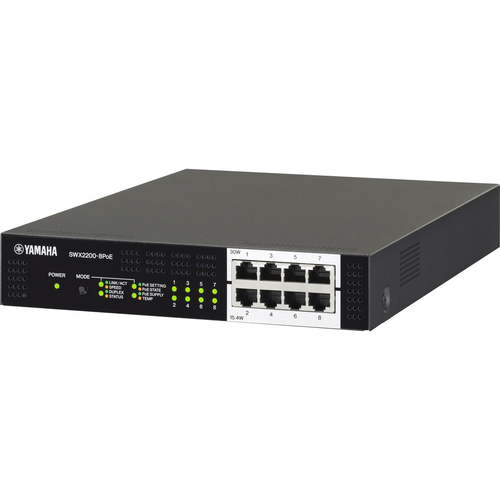

- Allied Telesis AT-GS910/5 2313R vsYamaha SWX2200-8POE network switch L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs
