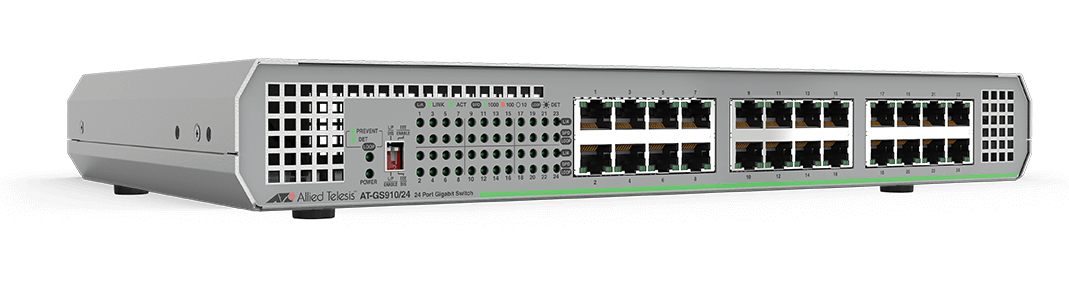

Allied Telesis AT-GS910/24 2332R
Model AT-GS910/24 2332RPart no. 2332REAN 4511427132855
52 specifications
- Type1U
- Weight2.1 kg
- ColourGrey
- Web-based managementYes
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 2.1 kg
- Colour
- Grey
- Web-based management
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-GS910/24 2332R
- Part number
- 2332R
- EAN / UPC
- 4511427132855
- Also known as
- Allied Telesis AT-GS910/24 2332R Gigabit Ethernet (10/100/1000) 1U Grey
Specifications
52 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Throughput | 35.7 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Security
| Specification | Value |
|---|---|
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
| Safety | UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB) |
Performance
| Specification | Value |
|---|---|
| Buffer size | 524 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.4 A |
| Power consumption (max) | 17 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 341 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Included power plug types | JP |
| Mounting brackets included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | EAC certification, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022 |
