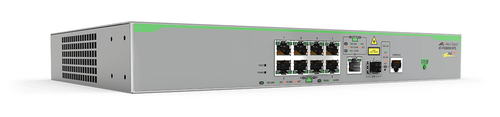

Allied Telesis AT-FS980M/9PS-50 Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
Model AT-FS980M/9PS-50Part no. 990-005047-50EAN 767035208831
49 specifications
- Memory128 MB
- Noise37 dB
- Weight2.5 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Memory
- 128 MB
- Noise
- 37 dB
- Weight
- 2.5 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-FS980M/9PS-50
- Part number
- 990-005047-50
- EAN / UPC
- 767035208831, 7670352088310
- Also known as
- Allied Telesis AT-FS980M/9PS-50 Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
Specifications
49 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 1 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 3.6 Gbit/s |
| Throughput | 2.68 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Grey |
| LED indicators | Yes |
| Safety | FCC, EN55022, CISPR22:2006, VCCI, C-Tick, UL 60950-1, C22.2 NO.60950-1, EN 60950-1, IEC60950-1, EN60950-1 |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR2-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Noise level | 37 dB |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 13 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 150 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 660 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 275 mm |
| Height | 42.5 mm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, cULus, TUV, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
