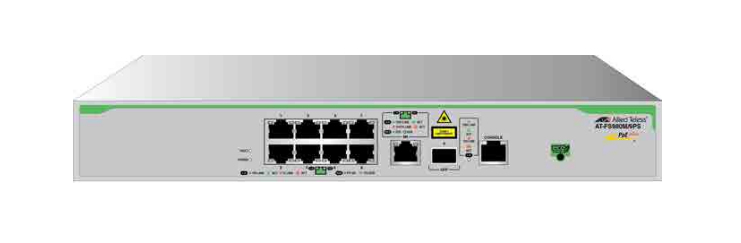

Allied Telesis AT-FS980M/9PS network switch Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Allied Telesis AT-FS980M/9PS network switch Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Model AT-FS980M/9PSEAN 767035208824

67 specifications

Memory512 MB
Noise37 dB
Weight2.5 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity8

See all specifications

Overview

Memory: 512 MB
Noise: 37 dB
Weight: 2.5 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 8

Brand: Allied Telesis
Category: Network Switch
Model: AT-FS980M/9PS
Part number: AT-FS980M/9PS
EAN / UPC: 767035208824
Also known as: Allied Telesis AT-FS980M/9PS network switch Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Specifications

67 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
MIB support	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	8
Gigabit Ethernet (copper) ports quantity	1
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	1
Console port	RJ-45

Network

Specification	Value
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Private VLAN

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	3.6 Gbit/s
Throughput	2.68 Mpps
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	10000

Security

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	MAC-based authentication, Port-based authentication, Web-based authentication
BPDU filtering/protection	Yes
Loop protection	Yes
Security algorithms	SNMP, SSH, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Product colour	Grey
LED indicators	Yes

Performance

Specification	Value
Memory type	DDR2-SDRAM
Internal memory	512 MB
Flash memory	128 MB
Noise level	37 dB

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.9 A
Power consumption (max)	13 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	8 W
Total Power over Ethernet (PoE) budget	150 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Heat dissipation	45 BTU/h

Weight & dimensions

Specification	Value
Width	210 mm
Depth	275 mm
Height	42.5 mm
Weight	2.5 kg

Packaging content

Specification	Value
Cables included	AC
Manual	Yes
User guide	Yes

Packaging data

Specification	Value
Package weight	4.2 kg

Certificates

Specification	Value
Certification	CE, cULus, TUV, RoHS
