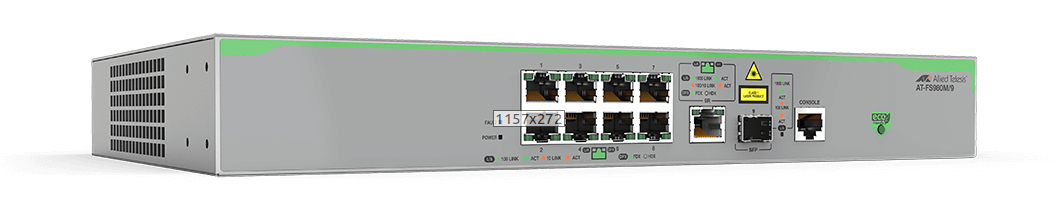

Allied Telesis AT-FS980M/9-10 network switch Managed L3 Fast Ethernet (10/100) Grey

Allied Telesis AT-FS980M/9-10 network switch Managed L3 Fast Ethernet (10/100) Grey

Model AT-FS980M/9-10EAN 767035208763

62 specifications
  • Memory512 MB
  • Weight2 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
See all specifications

Overview

Memory
512 MB
Weight
2 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
Brand
Allied Telesis
Model
AT-FS980M/9-10
Part number
AT-FS980M/9-10
EAN / UPC
767035208763
Also known as
Allied Telesis AT-FS980M/9-10 network switch Managed L3 Fast Ethernet (10/100) Grey

Specifications

62 specifications in 15 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity8
Gigabit Ethernet (copper) ports quantity1
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Combo SFP ports quantity1
Console portRJ-45

Network

Networking standardsIEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-TX
Port mirroringYes
Full duplexYes
IP routingYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Port-based VLAN

Data transmission

MAC address table16000 entries
Switching capacity3.6 Gbit/s
Throughput2.68 Mpps
Number of queues8
Jumbo frames supportYes
Jumbo frames10000

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
AuthenticationMAC-based authentication, Port-based authentication, Web-based authentication
BPDU filtering/protectionYes
Loop protectionYes
Security algorithmsSNMP, SSH, SSL/TLS

Multicast features

Multicast supportYes

Design

Product colourGrey
LED indicatorsYes
SafetyFCC, EN55022, CISPR22:2006, VCCI, C-Tick, UL 60950-1, C22.2 NO.60950-1, EN 60950-1, IEC60950-1, EN60950-1

Performance

Memory typeDDR2-SDRAM
Internal memory512 MB
Flash memory128 MB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current0.9 A
Power consumption (max)6.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Heat dissipation22 BTU/h

Weight & dimensions

Width210 mm
Depth275 mm
Height42.5 mm
Weight2 kg

Packaging content

Cables includedAC

Packaging data

Package weight3.7 kg

Certificates

CertificationCE, cULus, TUV, RoHS
