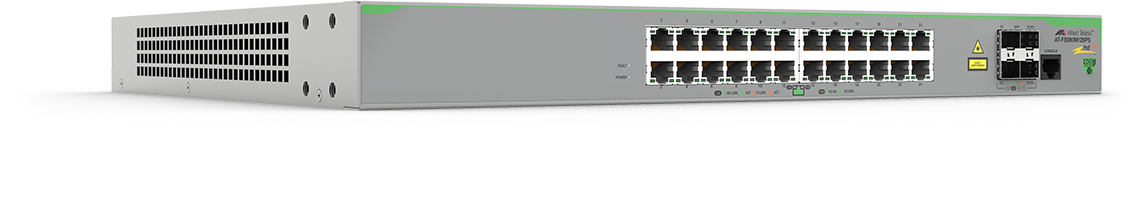

Allied Telesis AT-FS980M/28PS-50 Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Allied Telesis AT-FS980M/28PS-50 Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Model AT-FS980M/28PS-50Part no. 990-005051-50EAN 767035208992

65 specifications
  • Memory512 MB
  • Weight5.1 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • Networking standardsIEEE 802.3at
See all specifications

Overview

Memory
512 MB
Weight
5.1 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Networking standards
IEEE 802.3at
Brand
Allied Telesis
Model
AT-FS980M/28PS-50
Part number
990-005051-50
EAN / UPC
767035208992
Also known as
Allied Telesis AT-FS980M/28PS-50 Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Specifications

65 specifications in 16 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP module slots quantity4

Network

Networking standardsIEEE 802.3at
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-T
Port mirroringYes
Full duplexYes
IP routingYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes

Optical fiber

Fiber ethernet cabling technology100BASE-X, 1000BASE-X

Data transmission

MAC address table16000 entries
Switching capacity12.8 Gbit/s
Throughput9.52 Mpps
Number of queues8
Jumbo frames supportYes
Jumbo frames10000

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
AuthenticationMAC-based authentication, Port-based authentication
BPDU filtering/protectionYes
Loop protectionYes
SSH/SSL supportYes
Security algorithmsSNMP, SSH, SSL/TLS

Multicast features

Multicast supportYes

Design

StackableYes
Product colourGrey
SafetyUL 60950-1 Ed2, C22.2 NO.60950-1, EN 60950-1 Ed2, IEC60950-1 Ed.2, EN60950-1 Ed2

Performance

Memory typeDDR2-SDRAM
Internal memory512 MB
Flash memory128 MB

Power

AC input voltage100 - 240 V
AC input frequency47/63 Hz
Input current8 A
Power consumption (max)49 W
Power plug typeType C

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget375 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Heat dissipation170 BTU/h

Weight & dimensions

Width440 mm
Depth345 mm
Height43.2 mm
Weight5.1 kg

Packaging content

Cables includedAC

Certificates

CertificationFCC part15 B, EN55022 Class A, CISPR22:2006, VCCI Class A, C-Tick, EN 55024, CE, cULus, TUV

Logistics data

Harmonized System (HS) code85176990
