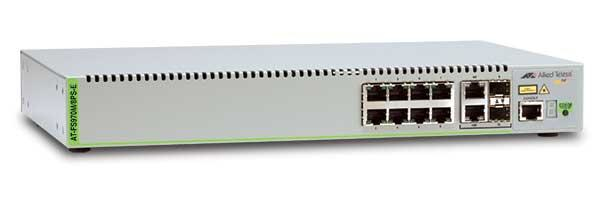

Allied Telesis AT-FS970M/8PS-E-50 network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Allied Telesis AT-FS970M/8PS-E-50 network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Model AT-FS970M/8PS-E-50

42 specifications
  • Memory128 MB
  • Weight2.3 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • Port mirroringYes
See all specifications

Overview

Memory
128 MB
Weight
2.3 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
Port mirroring
Yes
Brand
Allied Telesis
Model
AT-FS970M/8PS-E-50
Part number
AT-FS970M/8PS-E-50
Also known as
Allied Telesis AT-FS970M/8PS-E-50 network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Specifications

42 specifications in 12 groups

Management features

Switch typeManaged
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Combo SFP ports quantity2
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Flow control supportYes
Head-of-line (HOL) blockingYes
Link aggregationYes
VLAN supportYes

Data transmission

MAC address table16000 entries
Switching capacity5.6 Gbit/s
Throughput4.1 Mpps
Latency (10-100 Mbps)10 µs
Latency (10 Gbps)80 µs

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
MAC address filteringYes

Multicast features

Multicast supportYes

Design

Product colourGrey

Performance

Processor frequency266 MHz
Memory typeRAM
Internal memory128 MB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget185 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Heat dissipation150 BTU/h

Weight & dimensions

Width330 mm
Depth203 mm
Height44 mm
Weight2.3 kg
