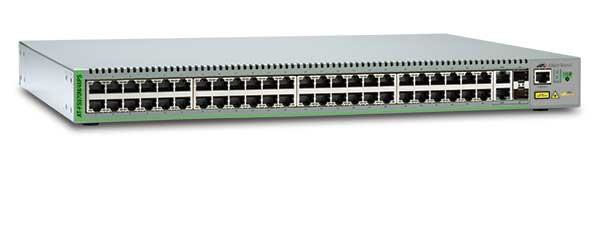

Allied Telesis AT-FS970M/48PS Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Allied Telesis AT-FS970M/48PS Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Model AT-FS970M/48PSPart no. 990-003998-50EAN 767035201597

44 specifications
  • Memory128 MB
  • Noise58.9 dB
  • Weight5.6 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
See all specifications

Overview

Memory
128 MB
Noise
58.9 dB
Weight
5.6 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
Brand
Allied Telesis
Model
AT-FS970M/48PS
Part numbers
990-003998-50, 990-003999-50, AT-FS970M/48PS-10, AT-FS970M/48PS-30
EAN / UPC
767035201597, 7670352015972, 767035201610
Also known as
Allied Telesis AT-FS970M/48PS Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Specifications

44 specifications in 12 groups

Management features

Switch typeManaged
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Combo SFP ports quantity2
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Flow control supportYes
Head-of-line (HOL) blockingYes
Link aggregationYes
VLAN supportYes

Data transmission

MAC address table16000 entries
Switching capacity13.6 Gbit/s
Throughput10.1 Mpps
Latency (10-100 Mbps)12 µs
Latency (10 Gbps)81 µs

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
MAC address filteringYes

Multicast features

Multicast supportYes

Design

Product colourGrey

Performance

Processor frequency266 MHz
Internal memory128 MB
Flash memory16 MB
Noise level58.9 dB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity48
Total Power over Ethernet (PoE) budget370 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Heat dissipation314 BTU/h

Weight & dimensions

Width441 mm
Depth323 mm
Height44 mm
Weight5.6 kg
