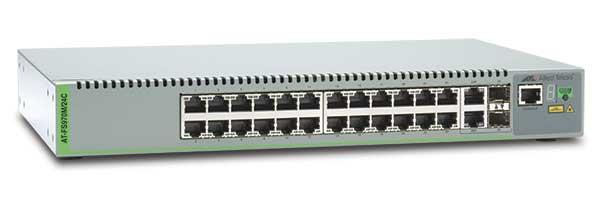

Allied Telesis AT-FS970M/24C Managed Fast Ethernet (10/100) Grey
Model AT-FS970M/24CPart no. 990-004007-50EAN 767035201733
41 specifications
- Memory128 MB
- Weight2.2 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Port mirroringYes
Overview
- Memory
- 128 MB
- Weight
- 2.2 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Port mirroring
- Yes
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-FS970M/24C
- Part numbers
- 990-004007-50, AT-FS970M/24C-10, AT-FS970M/24C-30
- EAN / UPC
- 767035201733, 767035201696, 7670352016962, 767035201719
- Also known as
- Allied Telesis AT-FS970M/24C Managed Fast Ethernet (10/100) Grey
Specifications
41 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 8.8 Gbit/s |
| Throughput | 6.5 Mpps |
| Latency (10-100 Mbps) | 12 µs |
| Latency (10 Gbps) | 82 µs |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Processor frequency | 266 MHz |
| Memory type | RAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 62 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 203 mm |
| Height | 44 mm |
| Weight | 2.2 kg |
