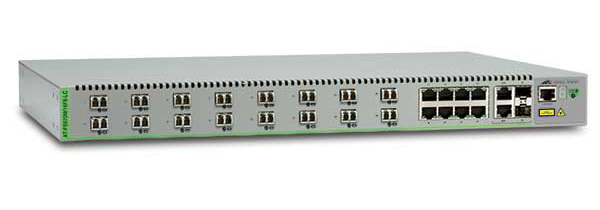

Allied Telesis AT-FS970M/16F8-LC-50 network switch Fast Ethernet (10/100) Grey

Allied Telesis AT-FS970M/16F8-LC-50 network switch Fast Ethernet (10/100) Grey

Model AT-FS970M/16F8-LC-50EAN 767035201436

34 specifications
  • Weight4.4 kg
  • ColourGrey
  • Quality of Service (QoS) supportYes
  • Basic switching RJ-45 Ethernet ports quantity16
  • 10G supportNo
  • MAC address table16000 entries
See all specifications

Overview

Weight
4.4 kg
Colour
Grey
Quality of Service (QoS) support
Yes
Basic switching RJ-45 Ethernet ports quantity
16
10G support
No
MAC address table
16000 entries
Brand
Allied Telesis
Model
AT-FS970M/16F8-LC-50
Part number
AT-FS970M/16F8-LC-50
EAN / UPC
767035201436
Also known as
Allied Telesis AT-FS970M/16F8-LC-50 network switch Fast Ethernet (10/100) Grey

Specifications

34 specifications in 11 groups

Management features

Quality of Service (QoS) supportYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Combo SFP ports quantity2
Fiber ports quantity8
Console portRJ-45
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Broadcast storm controlYes
VLAN supportYes
Number of VLANs4096

Data transmission

MAC address table16000 entries
Switching capacity8.8 Gbit/s
Throughput6.5 Mpps

Multicast features

Multicast supportYes

Design

Rack mountingYes
Product colourGrey
SafetyUL 60950-1 (cUlus), EN60950-1 (TUV), EN60825

Power

AC input voltage100 - 240 V
AC input frequency47/63 Hz
Power consumption (typical)22 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 40 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m

Weight & dimensions

Width441 mm
Depth323 mm
Height44 mm
Weight4.4 kg

Certificates

CertificationFCC class A, CISPR class A, EN55022 class A, C-TICK, VCCI Class A, CE, EN601000-3-2, EN601000-3-3
