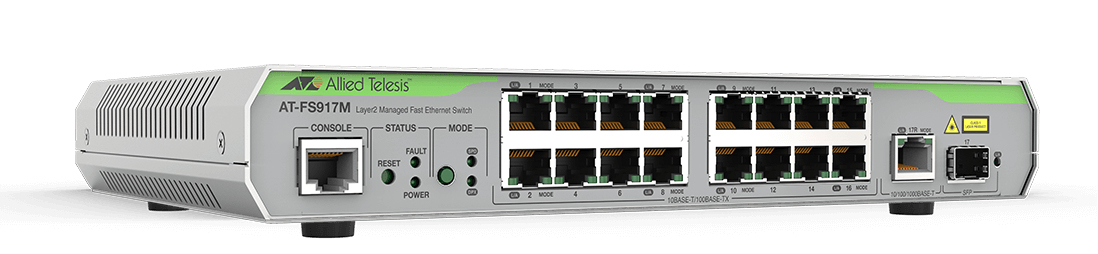

Allied Telesis AT-FS917M-30 network switch Managed L2 Fast Ethernet (10/100) 1U Grey
Model AT-FS917M-30EAN 767035203560
65 specifications
- Memory32 MB
- Type1U
- Weight1.4 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
Overview
- Memory
- 32 MB
- Type
- 1U
- Weight
- 1.4 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-FS917M-30
- Part number
- AT-FS917M-30
- EAN / UPC
- 767035203560
- Also known as
- Allied Telesis AT-FS917M-30 network switch Managed L2 Fast Ethernet (10/100) 1U Grey
Specifications
65 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | MIB II (RFC1213), Ethernet MIB(RFC2665), Extended Interface MIB(RFC2863 [if X Entry]), Bridge MIB(RFC1493) Private MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | VLAN Identifier ( VLAN ID), Tagged VLAN, Port-based VLAN |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 8.2 Gbit/s |
| Forwarding rate | 3.87 Mpps |
| Store-and-forward | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | RADIUS |
| Loop protection | Yes |
| Security algorithms | MD5, PEAP, SSL/TLS, TTLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMP, MLD |
| Supported network protocols | BPDU, DHCP, SNTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Wall mountable | Yes |
| Safety | UL60950-1, CSA-C22.2 No. 60950-1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 32 MB |
| Flash memory | 8 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.3 A |
| Power consumption (typical) | 9.1 W |
| Power consumption (max) | 13 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 263 mm |
| Depth | 179 mm |
| Height | 38 mm |
| Weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Packaging data
| Specification | Value |
|---|---|
| Included power plug types | UK |
