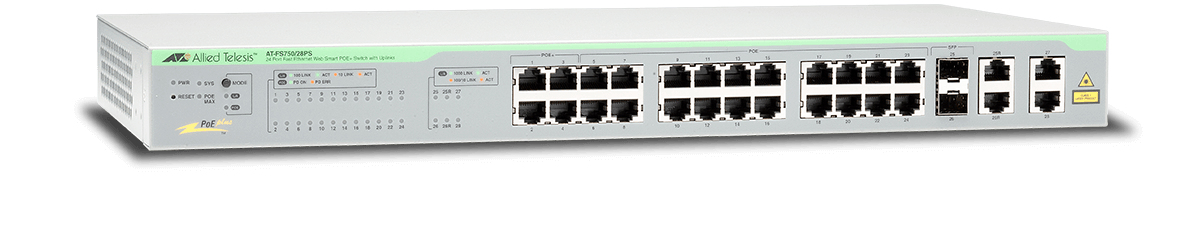

100) Power over Ethernet (PoE) 1U Grey

Model AT-FS750/28PS-30EAN 767035203973

73 specifications

Memory128 MB
Type1U
Weight5 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity26

See all specifications

Overview

Memory: 128 MB
Type: 1U
Weight: 5 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 26

Brand: Allied Telesis
Category: Network Switch
Model: AT-FS750/28PS-30
Part number: AT-FS750/28PS-30
EAN / UPC: 767035203973
Also known as: Allied Telesis AT-FS750/28PS-30 network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

Specifications

73 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
MIB support	RFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	2
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2
Fiber optic connector	SFP

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Port mirroring	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	VLAN Identifier ( VLAN ID), Tagged VLAN, Port-based VLAN
Number of VLANs	256

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	12.8 Gbit/s
Forwarding rate	9.5 Mpps
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB

Security

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	200
IGMP snooping	Yes
Authentication	MAC-based authentication, Port-based authentication
Authentication type	RADIUS
MAC address filtering	Yes
Password protection	Yes
Security algorithms	802.1x RADIUS, SNMPv3

Multicast features

Specification	Value
Multicast support	Yes
Number of multicast groups filtered	256

Protocols

Specification	Value
Management protocols	SNMPv1/v2c/v3

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Grey
LED indicators	Yes
Wall mountable	Yes

Performance

Specification	Value
Memory type	DRAM
Internal memory	128 MB
Flash memory	16 MB
Firmware upgradeable	Yes

Power

Specification	Value
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	241 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	193 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	210 mm
Height	44 mm
Weight	5 kg

Packaging content

Specification	Value
Manual	Yes
Rack mount kit	Yes

Certificates

Specification	Value
Certification	UL60950-1 2nd edition (UL) FCC/EN55022/CISPR 22 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE Mark CSA / cUL
