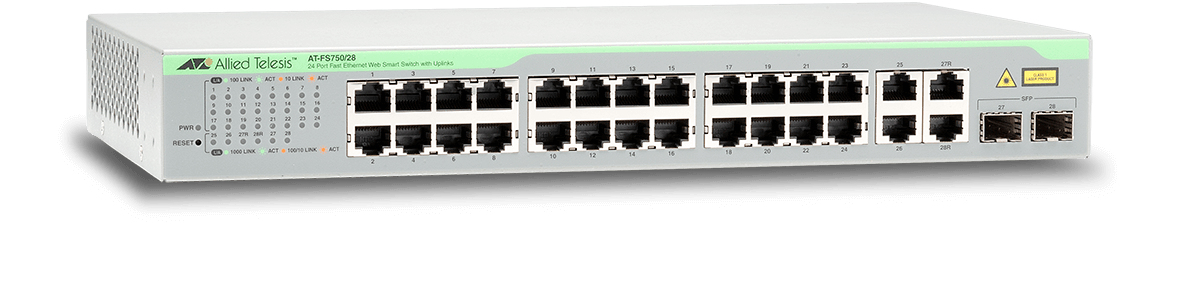

Allied Telesis AT-FS750/28-10 network switch Managed Fast Ethernet (10/100) 1U Grey

Allied Telesis AT-FS750/28-10 network switch Managed Fast Ethernet (10/100) 1U Grey

Model AT-FS750/28-10EAN 767035203904

61 specifications

Memory128 MB
Type1U
Weight2.2 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity28

See all specifications

Overview

Memory: 128 MB
Type: 1U
Weight: 2.2 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 28

Brand: Allied Telesis
Category: Network Switch
Model: AT-FS750/28-10
Part number: AT-FS750/28-10
EAN / UPC: 767035203904
Also known as: Allied Telesis AT-FS750/28-10 network switch Managed Fast Ethernet (10/100) 1U Grey

Specifications

61 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
MIB support	RFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	28
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	2
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Port mirroring	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Virtual LAN features	Tagged VLAN, Port-based VLAN
Number of VLANs	4000

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	12.8 Gbit/s
Forwarding rate	9.5 Mpps
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	200
IGMP snooping	Yes
MAC address filtering	Yes
Password protection	Yes
Security algorithms	802.1x RADIUS, SNMPv3

Multicast features

Specification	Value
Multicast support	Yes
Number of multicast groups filtered	256

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Grey
LED indicators	Yes

Performance

Specification	Value
Internal memory	128 MB
Flash memory	16 MB

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	8.7 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	330 mm
Depth	180 mm
Height	44 mm
Weight	2.2 kg

Packaging content

Specification	Value
Manual	Yes

Packaging data

Specification	Value
Included power plug types	US
Mounting brackets included	Yes
Rubber feet	Yes

Certificates

Specification	Value
Certification	UL60950-1 2nd edition (UL) FCC/EN55022/CISPR 22 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE Mark CSA / cUL
