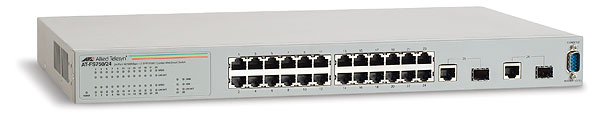

Allied Telesis AT-FS750/24-50 Managed
Model AT-FS750/24-50Part no. 990-001058-50
32 specifications
- Memory16 MB
- Speed8.8 Gbit/s
- ConnectivityWired
- Weight3.2 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 16 MB
- Speed
- 8.8 Gbit/s
- Connectivity
- Wired
- Weight
- 3.2 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-FS750/24-50
- Part number
- 990-001058-50
- Also known as
- Allied Telesis AT-FS750/24-50 Managed
Specifications
32 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Link aggregation | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 8.8 Gbit/s |
| Maximum data transfer rate | 8.8 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 16 MB |
| Flash memory | 4 MB |
| Mean time between failures (MTBF) | 187805 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 6.6 Mbit/s |
| Dimensions (WxDxH) | 440 x 257 x 43.2 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Networking features | 1000Mbps Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 32 - 113 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA / CUL |
