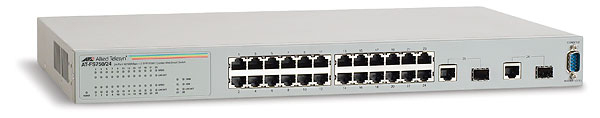

Allied Telesis AT-FS750/24 Managed

Allied Telesis AT-FS750/24 Managed

Model AT-FS750/24Part no. AT-FS750/24-10EAN 7670351785302

24 specifications
  • Speed1 Gbit/s
  • Weight3.24 kg
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • Port mirroringYes
  • MAC address table8000 entries
See all specifications

Overview

Speed
1 Gbit/s
Weight
3.24 kg
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Port mirroring
Yes
MAC address table
8000 entries
Brand
Allied Telesis
Model
AT-FS750/24
Part numbers
AT-FS750/24-10, AT-FS750/24-30
EAN / UPC
7670351785302, 767035178554, 7670351785548, 767035178530 +3 more
Also known as
Allied Telesis AT-FS750/24 Managed

Specifications

24 specifications in 11 groups

Management features

Switch typeManaged
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Combo SFP ports quantity2
SFP/SFP+ slots quantity2

Network

Networking standardsIEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroringYes
Flow control supportYes
Link aggregationYes

Data transmission

MAC address table8000 entries
Maximum data transfer rate1 Gbit/s
Packet buffer memory0.5 MB

Design

StackableNo

Performance

Flash memory1 MB

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Dimensions (WxDxH)440 x 257 x 43.2 mm
Packet transfer speed14880 - 1488000 pps
Power requirements100-240vAC, 50/60Hz, 0.3A
Non-operating relative humidity (non-condensing)5 - 95%

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 90%

Weight & dimensions

Weight3.24 kg

Certificates

CertificationUL 1950 FCC/EN55022 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE
