Allied Telesis AT-FS750/20-50 Managed Fast Ethernet (10/100) 1U Grey
Model AT-FS750/20-50Part no. 990-004643-50EAN 767035203898
51 specifications
- Type1U
- Weight2.2 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity20
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 2.2 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 20
- 10G support
- No
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-FS750/20-50
- Part number
- 990-004643-50
- EAN / UPC
- 767035203898
- Also known as
- Allied Telesis AT-FS750/20-50 Managed Fast Ethernet (10/100) 1U Grey
Specifications
51 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | RFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 11.2 Gbit/s |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | FTP, HTTP, SNMPv1/v2c/v3, SNTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 7.6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare Allied Telesis AT-FS750/20-50 Managed Fast Ethernet (10/100) 1U Grey

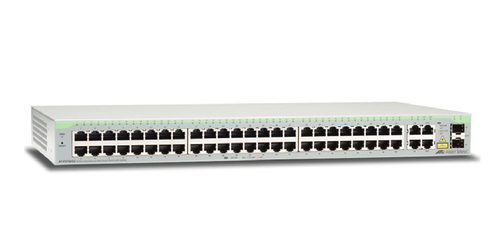

Compare any products- Allied Telesis AT-FS750/20-50 Managed Fast Ethernet (10/100) 1U Grey vsAllied Telesis AT-FS750/52-50 Managed Fast Ethernet (10/100) 1U GreyCompare specs

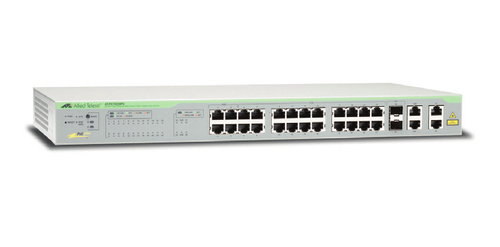

- Allied Telesis AT-FS750/20-50 Managed Fast Ethernet (10/100) 1U Grey vsAllied Telesis AT-FS750/28PS-50 Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U GreyCompare specs
- Allied Telesis AT-FS750/20-50 Managed Fast Ethernet (10/100) 1U Grey vsAllied Telesis AT-FS750/28-50 Managed Fast Ethernet (10/100) 1U GreyCompare specs

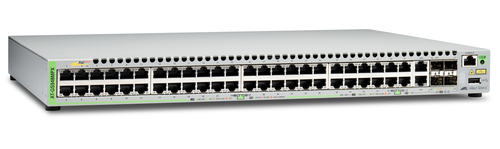

- Allied Telesis AT-FS750/20-50 Managed Fast Ethernet (10/100) 1U Grey vsAllied Telesis AT-GS948MPX-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs

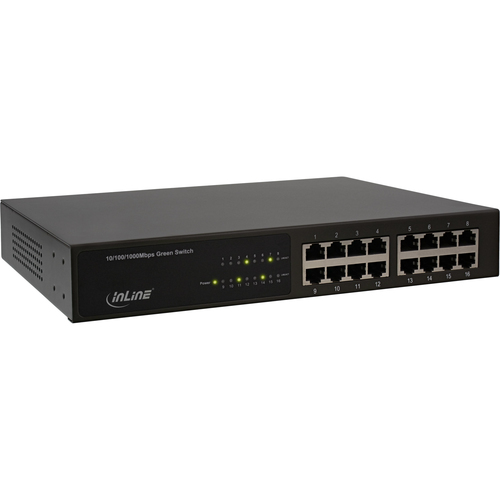

- Allied Telesis AT-FS750/20-50 Managed Fast Ethernet (10/100) 1U Grey vsInLine Gigabit switch 16 portCompare specs

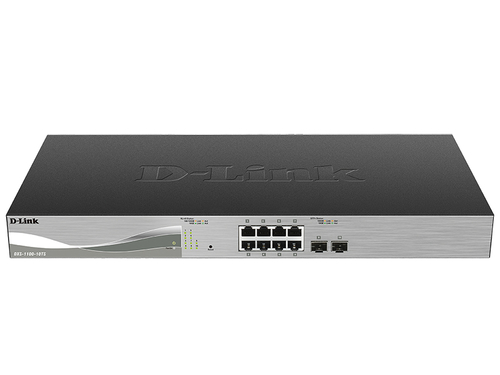

- Allied Telesis AT-FS750/20-50 Managed Fast Ethernet (10/100) 1U Grey vsD-Link DXS-1100-10TS network switch Managed L2Compare specs

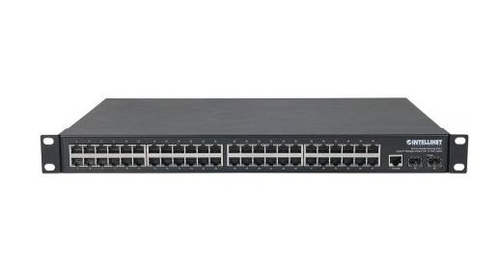

- Allied Telesis AT-FS750/20-50 Managed Fast Ethernet (10/100) 1U Grey vsIntellinet 561112 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs

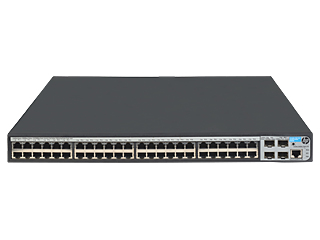

- Allied Telesis AT-FS750/20-50 Managed Fast Ethernet (10/100) 1U Grey vsHP OfficeConnect 1920 48G PoE+ (370W)Compare specs
