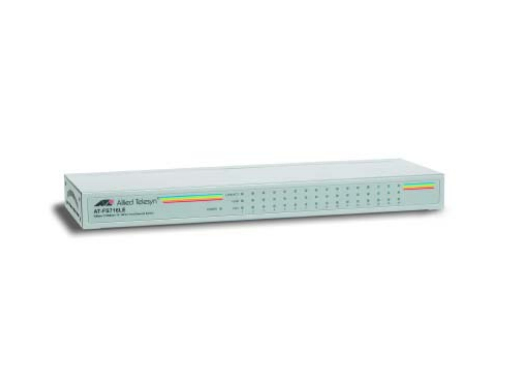

AT-FS716LE Unmanaged Fast Ethernet (10/100) White
Model AT-FS716LEPart no. AT-FS716LE-10
27 specifications
- Weight600 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table4000 entries
Overview
- Weight
- 600 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 4000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-FS716LE
- Part number
- AT-FS716LE-10
- Also known as
- Allied Telesis AT-FS716LE Unmanaged Fast Ethernet (10/100) White
Specifications
27 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Packet buffer memory | 0.256 MB |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 3.3 V |
| Input current | 2.6 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 267 mm |
| Depth | 89 mm |
| Height | 26 mm |
| Weight | 600 g |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 CSA 22.2 No. 950 FCC/EN55022 Class B VCCI Class B EN60950 (TUV) EN55024 CE |
