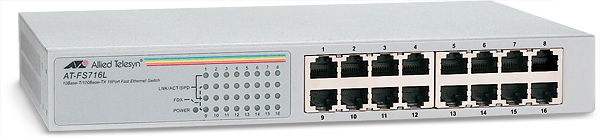

Allied Telesis AT-FS716L Unmanaged
Model AT-FS716LPart no. AT-FS716L-10EAN 7670351692242
21 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight900 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- Networking standardsIEEE 802.3u, IEEE 802.3x
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 900 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Networking standards
- IEEE 802.3u, IEEE 802.3x
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-FS716L
- Part numbers
- AT-FS716L-10, AT-FS716L-30
- EAN / UPC
- 7670351692242, 767035169231, 132018279038, 163120573134 +2 more
- Also known as
- Allied Telesis AT-FS716L Unmanaged
Specifications
21 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.5 MB |
Design
| Specification | Value |
|---|---|
| Stackable | No |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 250 x 116 x 36 mm |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet |
| Packet transfer speed | 148000 pps |
| Power requirements | 100-240 VAC, 4A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 900 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, TUV, VCCI Class B ITE, EN 60950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class B, FCC |
What people say
Reviews & ratings
Allied Telesis AT-FS716L Unmanaged
No reviews yet
Be the first to tell others how Allied Telesis AT-FS716L Unmanaged works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis AT-FS716L Unmanaged
All network switch comparisons- Allied Telesis AT-FS716L Unmanaged vsAllied Telesis AT-FS750/24 ManagedCompare specs
- Allied Telesis AT-FS716L Unmanaged vsAllied Telesis AT-8000S/24 POECompare specs
- Allied Telesis AT-FS716L Unmanaged vsAllied Telesis AT-FS717FC/SC UnmanagedCompare specs

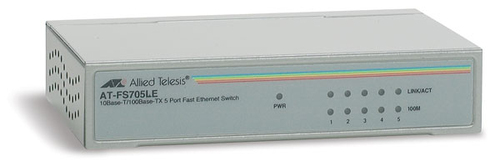

- Allied Telesis AT-FS716L Unmanaged vsAllied Telesis AT-FS705LE UnmanagedCompare specs
