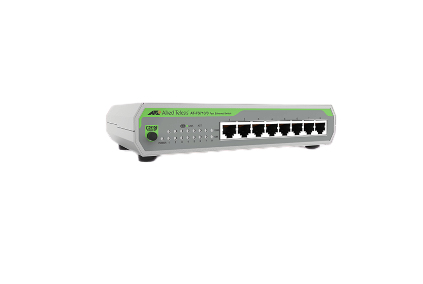

AT-FS710/8 network switch Unmanaged Fast Ethernet (10/100) Green, Grey
Model AT-FS710/8
32 specifications
- Weight710 g
- ColourGreen, Grey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 710 g
- Colour
- Green, Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-FS710/8
- Part number
- AT-FS710/8
- Also known as
- Allied Telesis AT-FS710/8 network switch Unmanaged Fast Ethernet (10/100) Green, Grey
Specifications
32 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto-negotiation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 1.6 Gbit/s |
| Throughput | 1.19 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 2048 |
| Packet buffer memory | 0.096 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Green, Grey |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 2.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 196 mm |
| Depth | 124 mm |
| Height | 38 mm |
| Weight | 710 g |
Certificates
| Specification | Value |
|---|---|
| Certification | VCCI Class B FCC Class B EN55032 Class A CISPR 32 Class B RCM Class B |
