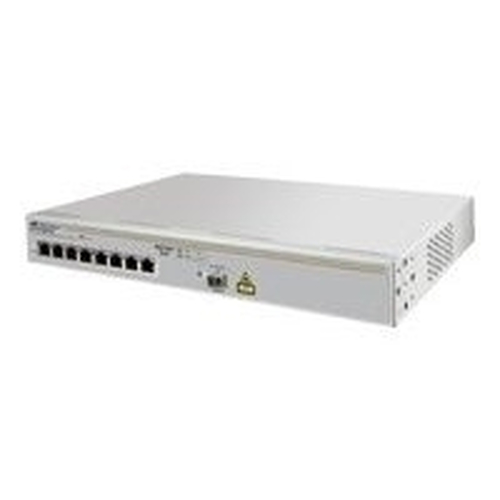

Allied Telesis AT-FS709FC Unmanaged
Model AT-FS709FCPart no. AT-FS709FC-30EAN 5052179083655
18 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight2 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Full duplexYes
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 2 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Full duplex
- Yes
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-FS709FC
- Part numbers
- AT-FS709FC-30, AT-FS709FC-10, AT-FS709FC-60
- EAN / UPC
- 5052179083655, 854587017292, 7670351247350, 767035124759
- Also known as
- Allied Telesis AT-FS709FC Unmanaged
Specifications
18 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1W, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.256 MB |
Design
| Specification | Value |
|---|---|
| Stackable | No |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 220 x 120 x 36 mm |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet |
| I/O ports | 1 x 100FX SC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, EN55022 CE Mark UL & CSA VCCI Class A EN60950 (TUV) EN55024 |
