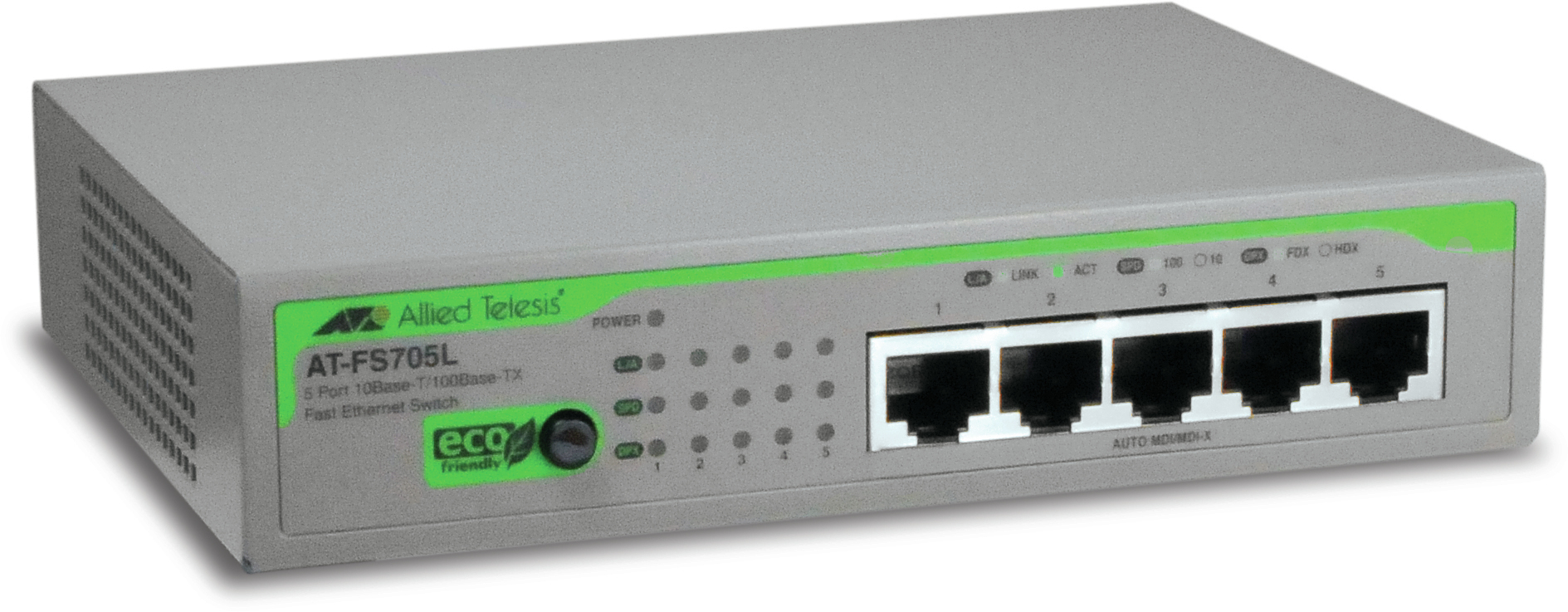

Allied Telesis AT-FS705L-50 Unmanaged
Model AT-FS705L-50Part no. 990-003028-50EAN 767035152387
18 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight600 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3u, IEEE 802.3x
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 600 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3u, IEEE 802.3x
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-FS705L-50
- Part numbers
- 990-003028-50, 990-001002-50
- EAN / UPC
- 767035152387
- Also known as
- Allied Telesis AT-FS705L-50 Unmanaged
Specifications
18 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.125 MB |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
Power
| Specification | Value |
|---|---|
| Power source | AC 120/230 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 197 x 116 x 36 mm |
| Connectivity technology | Wired |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 600 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, TUV, VCCI Class B ITE, EN 60950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class B, FCC |
