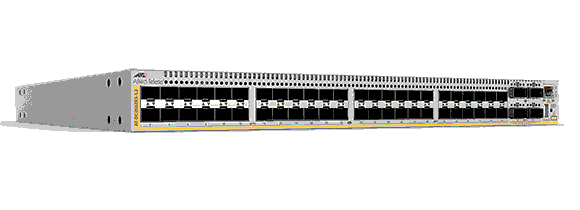

Allied Telesis AT-DC2552XS/L3 network switch Managed Grey
Model AT-DC2552XS/L3EAN 767035206004
38 specifications
- Weight8.3 kg
- ColourGrey
- Switch typeManaged
- SFP+ module slots quantity48
- 10G supportYes
- MAC address table128000 entries
Overview
- Weight
- 8.3 kg
- Colour
- Grey
- Switch type
- Managed
- SFP+ module slots quantity
- 48
- 10G support
- Yes
- MAC address table
- 128000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-DC2552XS/L3
- Part number
- AT-DC2552XS/L3
- EAN / UPC
- 767035206004
- Also known as
- Allied Telesis AT-DC2552XS/L3 network switch Managed Grey
Specifications
38 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP+ module slots quantity | 48 |
| QSFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Active link detection | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 128000 entries |
| Switching capacity | 1280 Gbit/s |
| Latency (10 Gbps) | 0.8 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 9 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Flash memory | 128 MB |
| Minimum RAM | 2000 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 250 W |
| Power consumption (max) | 280 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 900 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 460 mm |
| Height | 44 mm |
| Weight | 8.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 11.3 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
