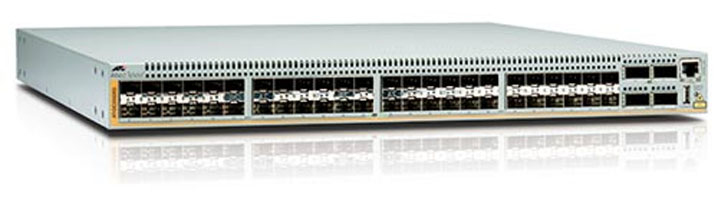

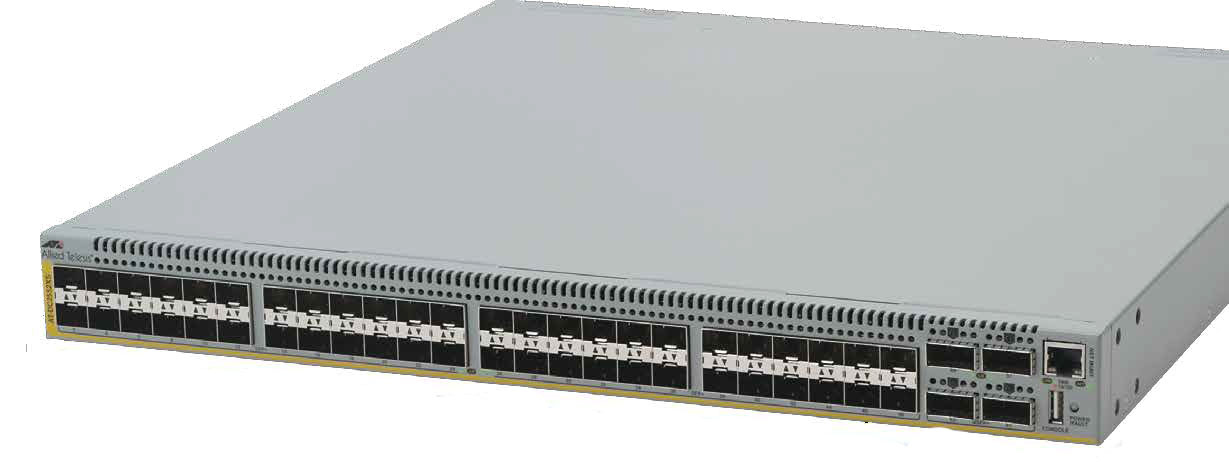

Allied Telesis AT-DC2552XS network switch Managed L3 1U Grey
Model AT-DC2552XSEAN 767035198941
48 specifications
- Memory2048 MB
- Type1U
- Weight8.3 kg
- ColourGrey
- Switch typeManaged
- SFP+ module slots quantity48
Overview
- Memory
- 2048 MB
- Type
- 1U
- Weight
- 8.3 kg
- Colour
- Grey
- Switch type
- Managed
- SFP+ module slots quantity
- 48
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-DC2552XS
- Part number
- AT-DC2552XS
- EAN / UPC
- 767035198941, 7670351989410
- Also known as
- Allied Telesis AT-DC2552XS network switch Managed L3 1U Grey
Specifications
48 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP+ module slots quantity | 48 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 128000 entries |
| Switching capacity | 1280 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3, NTP, HTTP, TFTP, SSHv2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Activity, Link |
Performance
| Specification | Value |
|---|---|
| Processor frequency | 1300 MHz |
| Internal memory | 2048 MB |
| Flash memory | 128 MB |
| Buffer size | 9216 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 250 W |
| Power consumption (max) | 280 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 460 mm |
| Height | 44 mm |
| Weight | 8.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, FCC, CISPR, C-TICK, VCCI, CE, UL, TUV |
