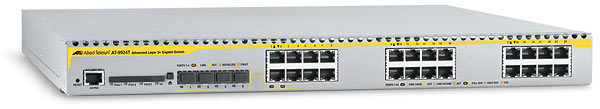

Allied Telesis AT-9924T Managed L3
Model AT-9924TPart no. AT-9924T-80EAN 767035184326
33 specifications
- Memory460 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight6.8 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 460 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 6.8 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-9924T
- Part number
- AT-9924T-80
- EAN / UPC
- 767035184326, 7670351843262
- Also known as
- Allied Telesis AT-9924T Managed L3
Specifications
33 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1v, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 48 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 64 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 460 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 240000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power consumption (typical) | 75 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 440 x 44.5 mm |
| Connectivity technology | Wired |
| Power requirements | 100-240 VAC, 47-63 Hz / 40-60 VDC |
| Security features | RFC 1321 MD5, RFC 2104 HMAC, FIPS 180 SHA-1, FIPS 186 RSA, FIPS 46-3 DES, FIPS 46-3 3DES |
| Acoustic pressure emissions | 51 dB |
| Electromagnetic emissions | EMC EN55022 A, FCC A,VCCI A, AS/NZS CISPR22 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.7 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL,TUV, RoHS |
